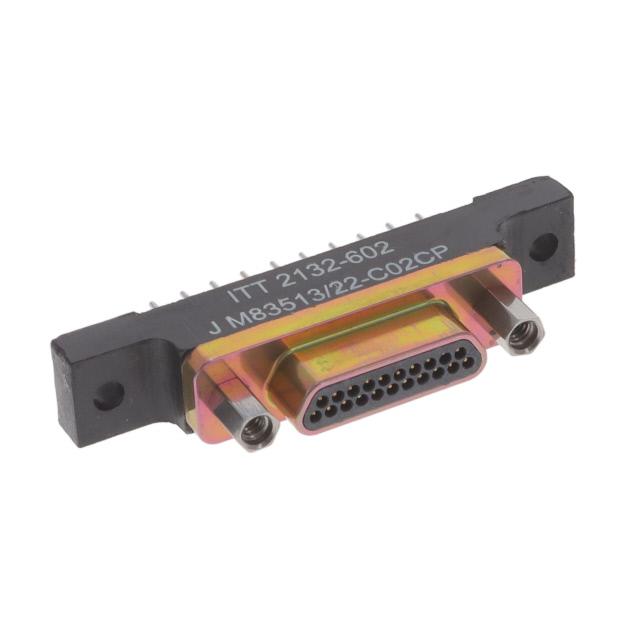

ITT Cannon, LLC M83513/22-C02CP

M83513-22-C02CP ITT Cannon, LLC M83513/22-C02CP
M83513/22-C02CP
ITT Cannon, LLC

Product Information

Shell Size, Connector Layout:
0.050 Pitch x 0.043 Row to Row
Flange Feature:
Mating Side, Female Screwlock (2-56)
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Connector Style:
D-Type, Micro-D
Contact Finish Thickness:
50.0µin (1.27µm)
Number of Positions:
21
edacadModel:
M83513/22-C02CP Models
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/13280028
Connector Type:
Plug, Male Pins
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Signal
Termination:
Solder
standardLeadTime:
33 Weeks
Current Rating (Amps):
3A
Backset Spacing:
-
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount, Through Hole
Series:
83513-Style Micro D Metal Shell (MDM)
Shell Material, Finish:
Aluminum, Yellow Chromate Plated Cadmium
Packaging:
Bag
ECCN:
EAR99
Checking for live stock

This is manufactured by ITT Cannon, LLC. The manufacturer part number is M83513/22-C02CP. 0.050 pitch x 0.043 row to row is the shell size and connector layout. Furthermore, mating side, female screwlock (2-56) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. It comes in d-type, micro-d connector style. It has 50.0µin (1.27µm) of contact finishing thickness. The product carries possible position value of 21. It comes in 2 of rows. plug, male pins Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of signal. The product features solder termination style. It has a long 33 weeks standard lead time. Additionally, the product's output is 3a. The product is available in panel mount, through hole configuration. The product 83513-style micro d metal shell (mdm), is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as aluminum, yellow chromate plated cadmium. In addition, bag is the available packaging type of the product. The product is designated with the ear99 code number.
