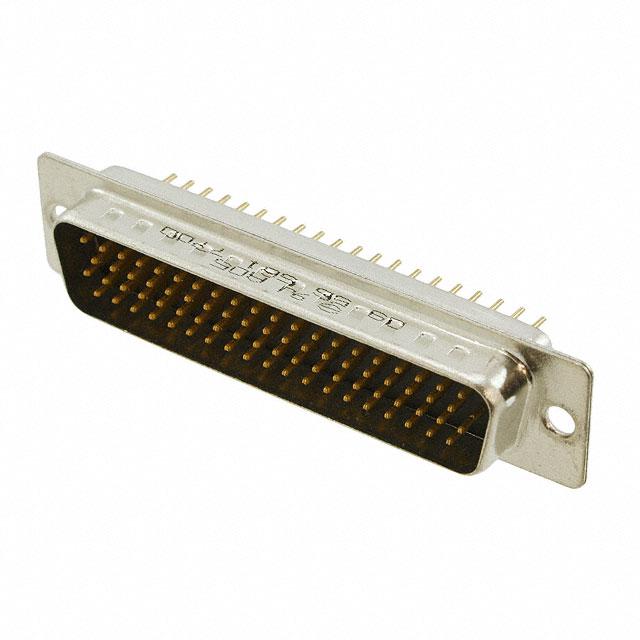

HARTING 09565617700
Product Information
Series:
D-Sub High Density
Current Rating:
2.0A
Dimensions:
67 x 10.74 x 15.35mm
Mounting Type:
Through Hole
Number of Contacts:
78
Gender:
Male
Body Orientation:
Straight
Termination Method:
Solder
Length:
67.0mm
Housing Material:
Steel
Width:
10.74mm
Depth:
15.35mm
Contact Plating:
Gold
Pitch:
2.41mm
Contact Material:
Copper Alloy
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Series Number:
0956
Shell Size, Connector Layout:
5 (DD, D) High Density
Flange Feature:
Housing/Shell (Unthreaded)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Connector Style:
D-Sub, High Density
Contact Finish Thickness:
-
Dielectric Material:
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions:
78
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
09565617700 Models
Number of Rows:
4
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3180930
Package:
Tray
Wire Gauge:
-
Contact Form:
Stamped
Connector Type:
Plug, Male Pins
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
2A
Backset Spacing:
-
Ingress Protection:
-
Features:
Grounding Indents
Mounting Type:
Through Hole
Color:
Black
Series:
-
Shell Material, Finish:
Steel, Nickel Plated
Contact Type:
Signal
Contact Material:
Copper Alloy
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 09565617700 on website for other similar products.
We accept all major payment methods for all products including ET11444802. Please check your shopping cart at the time of order.
You can order HARTING brand products with 09565617700 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in D-Sub Connector Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HARTING 09565617700. You can also check on our website or by contacting our customer support team for further order details on HARTING 09565617700.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11444802 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HARTING" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11444802.
Yes. We ship 09565617700 Internationally to many countries around the world.
This is manufactured by HARTING. The manufacturer part number is 09565617700. The product d-sub high density, is a highly preferred choice for users. The product has a current rating of 2.0a. The given dimensions of the product include 67 x 10.74 x 15.35mm. The product is available in through hole configuration. The product contains 78 contacts. In addition, male is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. Its accurate length is 67.0mm. The product also features robust steel housing material. Furthermore, the product is 10.74mm wide. The product comes in 15.35mm depth. The high-quality gold is used as contact plating material. Moreover, the product is 2.41mm. The product is made from sturdy copper alloy materials. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55.0°c. It carries [Serial Number] serial number. 5 (dd, d) high density is the shell size and connector layout. Furthermore, housing/shell (unthreaded) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. It comes in d-sub, high density connector style. Moreover, the product is constructed from highly polybutylene terephthalate (pbt), polyester, glass filled dielectric material. The product carries possible position value of 78. In addition, it is reach unaffected. It comes in 4 of rows. It carries ul94 v-0 of material flammability rating. It is shipped in tray package . It also has a stamped contact form. plug, male pins Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 2a. The splendid features of the product include grounding indents. It has a classic black colour. It is made from durable shell materials and has an excellent finishing such as steel, nickel plated. It has typical contact type of signal. The product is designated with the ear99 code number.
