Shell Size, Connector Layout:
0.050 Pitch x 0.043 Row to Row
Flange Feature:
Mating Side, Female Screwlock (2-56)
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Type, Micro-D
Contact Finish Thickness:
50.0µin (1.27µm)
Dielectric Material:
Liquid Crystal Polymer (LCP), Polyester
Number of Positions:
37
Voltage Rating:
-
REACH Status:
REACH Affected
edacadModel:
M83513/10-F01NP Models
Number of Rows:
4
Primary Material:
Metal
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/6218129
Package:
Bulk
Wire Gauge:
-
Contact Form:
-
Connector Type:
Plug, Male Pins
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
25 Weeks
Current Rating (Amps):
3A
Backset Spacing:
0.130" (3.30mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Color:
-
Series:
83513-Style Micro D Metal Shell (MDM)
Shell Material, Finish:
Aluminum Alloy, Nickel Plated, Electroless
Contact Type:
Signal
Contact Material:
Copper Alloy
Base Product Number:
M83513/10
ECCN:
EAR99

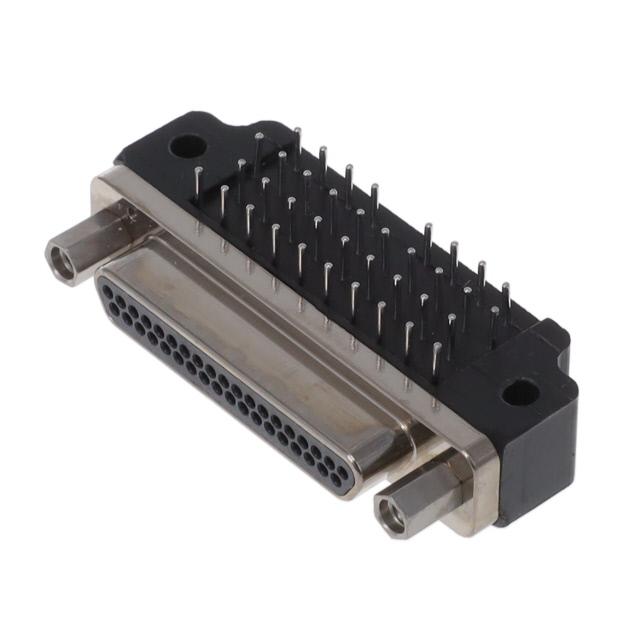

This is manufactured by ITT Cannon, LLC. The manufacturer part number is M83513/10-F01NP. 0.050 pitch x 0.043 row to row is the shell size and connector layout. Furthermore, mating side, female screwlock (2-56) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -55°c ~ 125°c operating temperature range. It comes in d-type, micro-d connector style. It has 50.0µin (1.27µm) of contact finishing thickness. Moreover, the product is constructed from highly liquid crystal polymer (lcp), polyester dielectric material. The product carries possible position value of 37. In addition, it is reach affected. It comes in 4 of rows. The basic product material is metal. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . plug, male pins Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 25 weeks standard lead time. Additionally, the product's output is 3a. Furthermore, 0.130" (3.30mm) is the given bracket spacing. The product is available in through hole, right angle configuration. The product 83513-style micro d metal shell (mdm), is a highly preferred choice for users. It is made from durable shell materials and has an excellent finishing such as aluminum alloy, nickel plated, electroless. It has typical contact type of signal. The product is made from sturdy copper alloy materials. Moreover, it corresponds to m83513/10, a base product number of the product. The product is designated with the ear99 code number.
