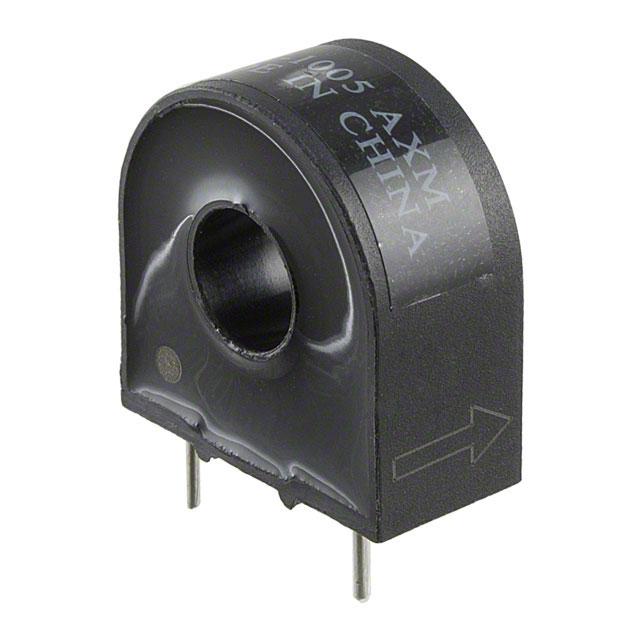

Triad Magnetics CST-1005

CST-1005 Triad Magnetics
CST-1005
Triad Magnetics

Product Information

Ratings:
-
Frequency Range:
50/60Hz
Current Ratio:
1000:1
HTSUS:
8504.31.4035
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Type:
Non-Invasive (Solid Core)
DC Resistance (DCR):
40Ohm
Height - Seated (Max):
0.976" (24.80mm)
REACH Status:
REACH Unaffected
edacadModel:
CST-1005 Models
edacadModelUrl:
/en/models/4009886
Manufacturer:
Triad Magnetics
ET (Volt-Time):
-
Size / Dimension:
0.925" L x 0.472" W (23.50mm x 12.00mm)
Turns Ratio - Primary:Secondary:
-
standardLeadTime:
23 Weeks
Current Rating (Amps):
5 A
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
CST
Packaging:
Bulk
ECCN:
EAR99
Checking for live stock

This is manufactured by Triad Magnetics. The manufacturer part number is CST-1005. The frequency range includes 50/60hz. It has 1000:1 of current ratio. It is assigned with possible HTSUS value of 8504.31.4035. The product is rohs3 compliant. Moreover, it has pc pin terminal style. It comes in non-invasive (solid core) configuration. It allows DC resistance of 40ohm. It has the maximum seated height of 0.976" (24.80mm). In addition, it is reach unaffected. The triad magnetics's product offers user-desired applications. The product's diameters include 0.925" l x 0.472" w (23.50mm x 12.00mm). It has a long 23 weeks standard lead time. Additionally, the product's output is 5 a. Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product cst, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
Supplier Document(Technical Reference)
pdf icon
CST-1005(Datasheets)
pdf icon
Standard Part Warranty Terms(Other Related Documents)
