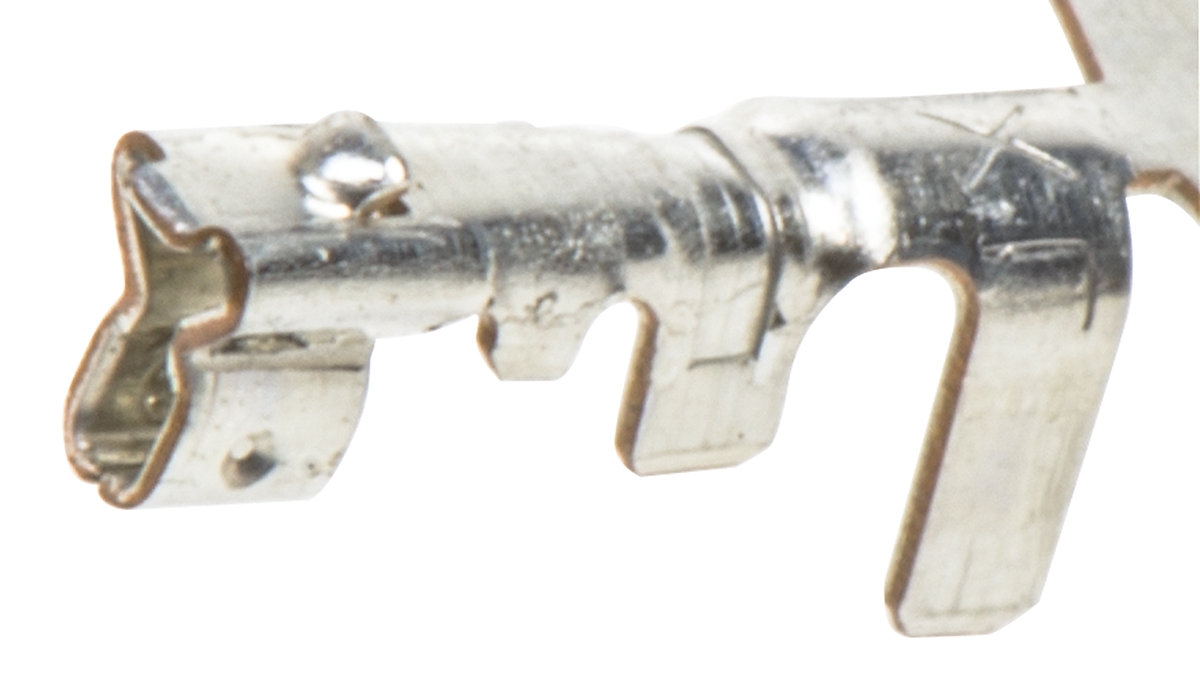

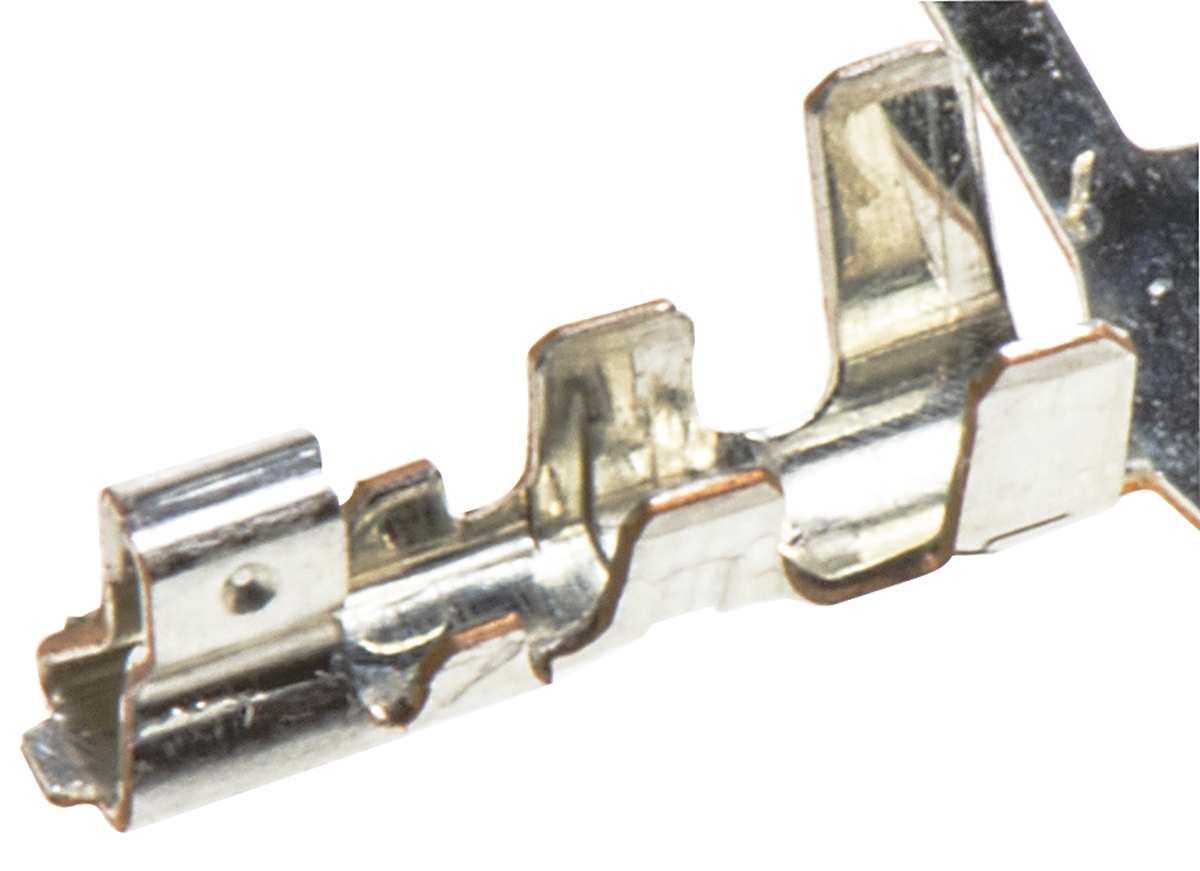

Molex PICO-SPOX 87421 Crimp Terminal Contact, Female, 0.05mm² to 0.2mm², 30AWG to 24AWG, Tin Plating

Enrgtech Part No: ET16778594
|
Manufacturer Part No:
87421-0000
|
Manufacturer: Molex

87421-0000 Molex PICO-SPOX 87421 Crimp Terminal Contact, Female, 0.05mm² to 0.2mm², 30AWG to 24AWG, Tin Plating

Product Information

Contact Plating:

Tin

Maximum Contact Resistance:

40mΩ

Gender:

Female

Minimum Wire Size AWG:

30 AWG

Current:

2.5A

Standards/Approvals:

Series:

Pico-SPOX

For Use With:

Pico-SPOX Connector Housing

Termination Type:

Crimp

Maximum Wire Size AWG:

24 AWG

Product Type:

Crimp Terminal

Maximum Operating Temperature:

105°C

Checking for live stock

The Molex 87421-0000 is a high-performance female crimp terminal from the renowned Pico-SPOX series, meticulously engineered for compact wire-to-board applications. Supporting wire gauges from 24 to 26 AWG, this terminal features a durable phosphor-bronze base with protective tin plating to ensure excellent conductivity and corrosion resistance. Its box-style design provides a secure electrical connection with a 1.50mm pitch, making it an ideal choice for high-density electronic assemblies where space-saving and signal integrity are paramount for reliable long-term performance.

Why Buy the Product?

This Molex 87421-0000 crimp terminal offers a secure, vibration-resistant connection in miniaturised electronic systems. It simplifies assembly while ensuring consistent electrical contact for sensitive signal applications.

Dual-Point Contact: Engineered with a specialised dual-point design to enhance electrical reliability and minimise signal interference.
Miniaturised Efficiency: Specifically crafted for 1.50mm pitch housings, allowing for high-density component placement in modern devices.

Special Features & Typical Environments

Functional Highlights

Friction Lock Mechanism: Provides a secure tactile click and enhanced retention once mated with the housing.
Tin-Plated Phosphor Bronze: Combines mechanical strength with superior solderability and resistance to oxidation.
Anti-Fish Hooking Design: Prevents terminals from tangling during the harness assembly process, reducing production waste.
Box-Style Construction: Protects the contact area from external damage and ensures uniform pressure.

Typical Applications

Consumer Electronics: Essential for internal wiring in smart home devices, gaming consoles, and personal computers.
Industrial Automation: Used in sensor interfaces and control modules requiring reliable low-current signal transmission.
Medical Equipment: Ideal for portable diagnostic tools where compact, high-reliability connections are critical.
