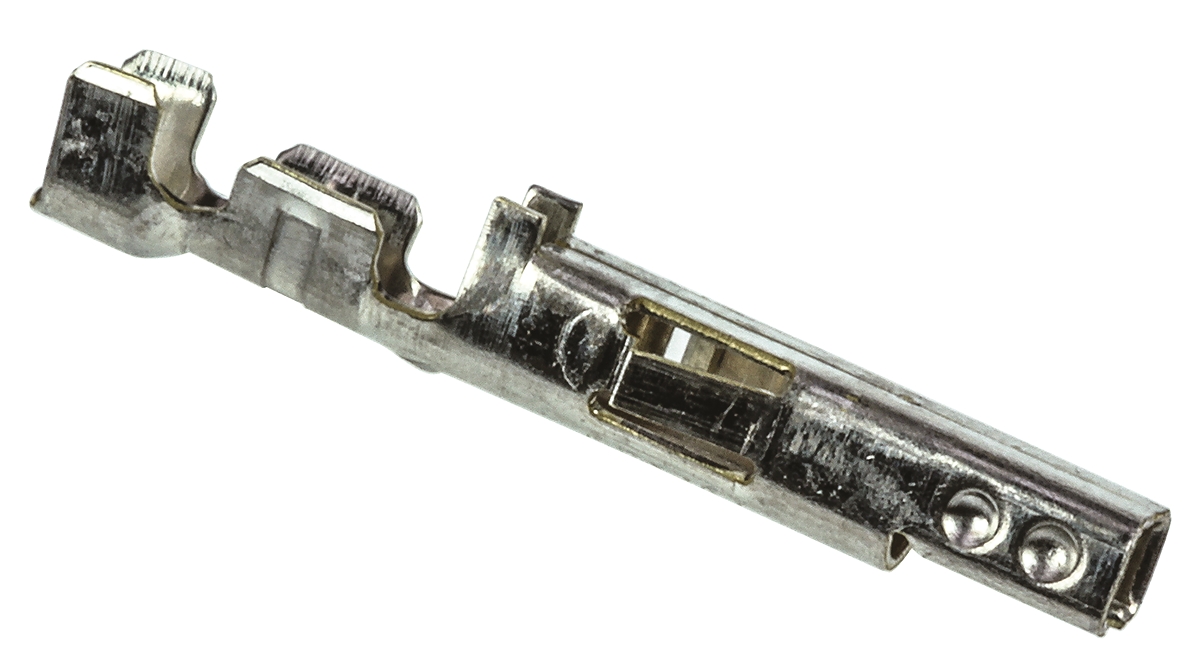

This is MINI-FIT Series 5556 Series Number Crimp Terminal Female 28AWG to 22AWG Tin over Copper Plating manufactured by Molex. The manufacturer part number is 39-00-0047. On the other hand, the wire has 0.08mm² of minimum size. The wire has a maximum size of 0.35mm². It also carries 9a maximum current. Additionally, it has a maximum 20mω contact resistance . In addition, female is the available "Gender" of the product. It allows crimp termination method. While the minimum wire size AWG includes 28awg. The high-quality tin is used as contact plating material. The product mini-fit, is a highly preferred choice for users. The product is highly suitable for mini-fit jr, mini-fit tpa and mini-fit bmi connector housings. Its maximum wires size includes 22awg. The product is made from sturdy brass materials. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -40°c. It carries [Serial Number] serial number.
Datasheet(Technical Reference)
Instruction Sheet - MINI-FIT JR. Dual-Wire Termination(Technical Reference)
Line Drawing - 39-00-0047(Technical Reference)
Specification Sheet - Mini-Fit JR. Wire to Wire & Wire to Board Connector System(Technical Reference)
