Manufacturer : Molex
Manufacturer Part No : 46012-3142
Enrgtech Part No : ET13968058
Product Range : PolySwitch RXEF Series

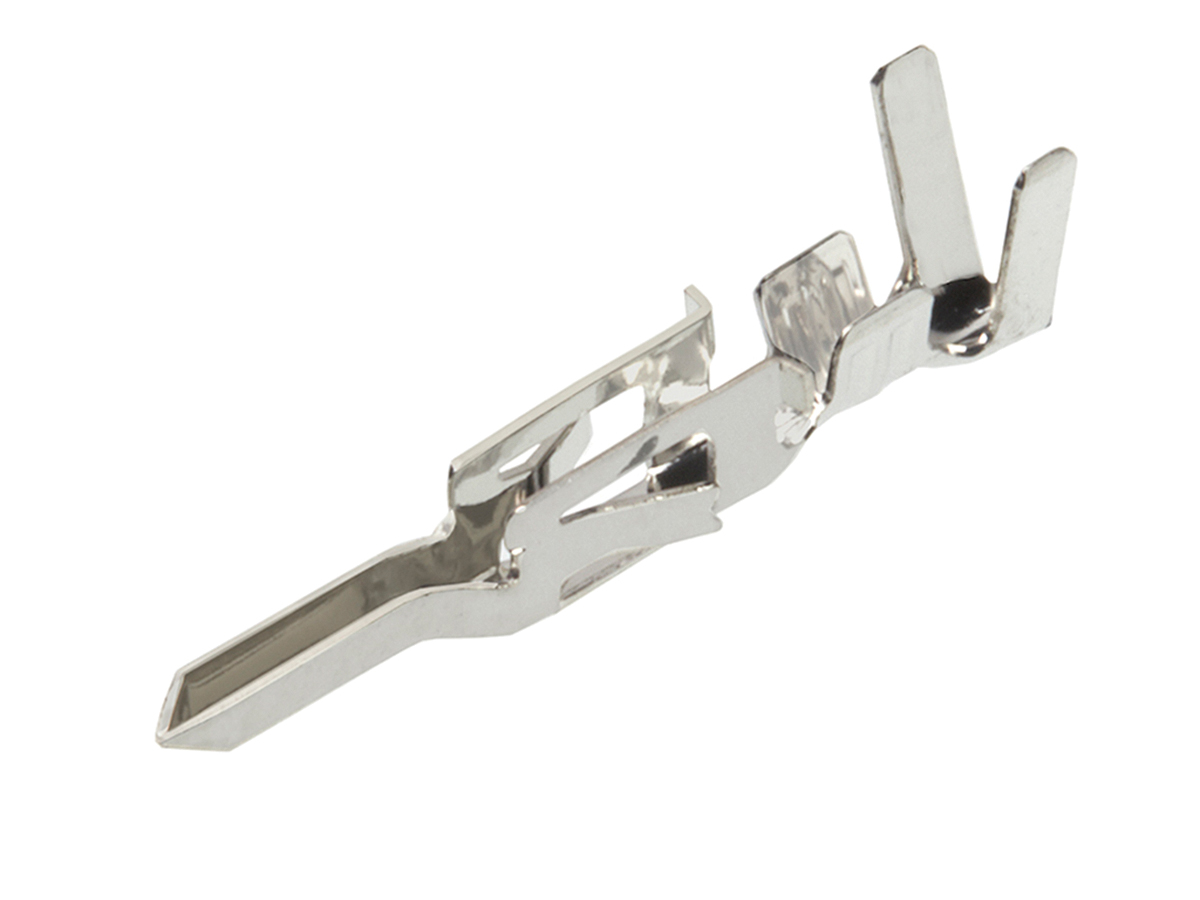

Molex Mini-Fit Plus, 46012 Series Number Crimp Terminal, Male, 16AWG to 16AWG, Tin Plating

Molex Mini-Fit Plus HCS Crimp Contacts The Mini-Fit Plus HCS is designed for high current applications up to 13A (dependant upon wire size and number of HCS contacts). These Molex HCS terminals can be used with all existing Mini-Fit plugs and receptacles. Male terminals 46012 and 44478 Series Use with 5559 Series plug housings typical stock number 319-1395 Female terminals 45750 and 44476 Series Use with 5557 Series receptacle housings typical stock number 319-1480 Tooling For crimp tool see stock number 501-083 For extraction tool see stock number 215-5900 Molex Mini-Fit Plus HCS

Product Information

Minimum Operating Temperature : -55°C
Maximum Contact Resistance : 10mΩ
Gender : Male
Termination Method : Compression, Crimp
Contact Plating : Tin
Series : Mini-Fit Plus
For Use With : 5559 Mini-Fit Jr. Plugs, 30068 Mini-Fit TPA Plugs, 42475 Mini-Fit MBI Panel Mount Plugs
Maximum Wire Size AWG : 16AWG
Contact Material : Copper
Maximum Operating Temperature : +105°C
rohs : RoHS Certificate of Compliance
Series Number : 46012

Technical Documents

  • Datasheet 46012-3142 (Technical Reference)

Availability:
49000
in stock
Check now

Rate:
  • 1000-4000
    +
    £ 0.098
  • 5000-9000
    +
    £ 0.090
  • 10000-14000
    +
    £ 0.082

Qty:
