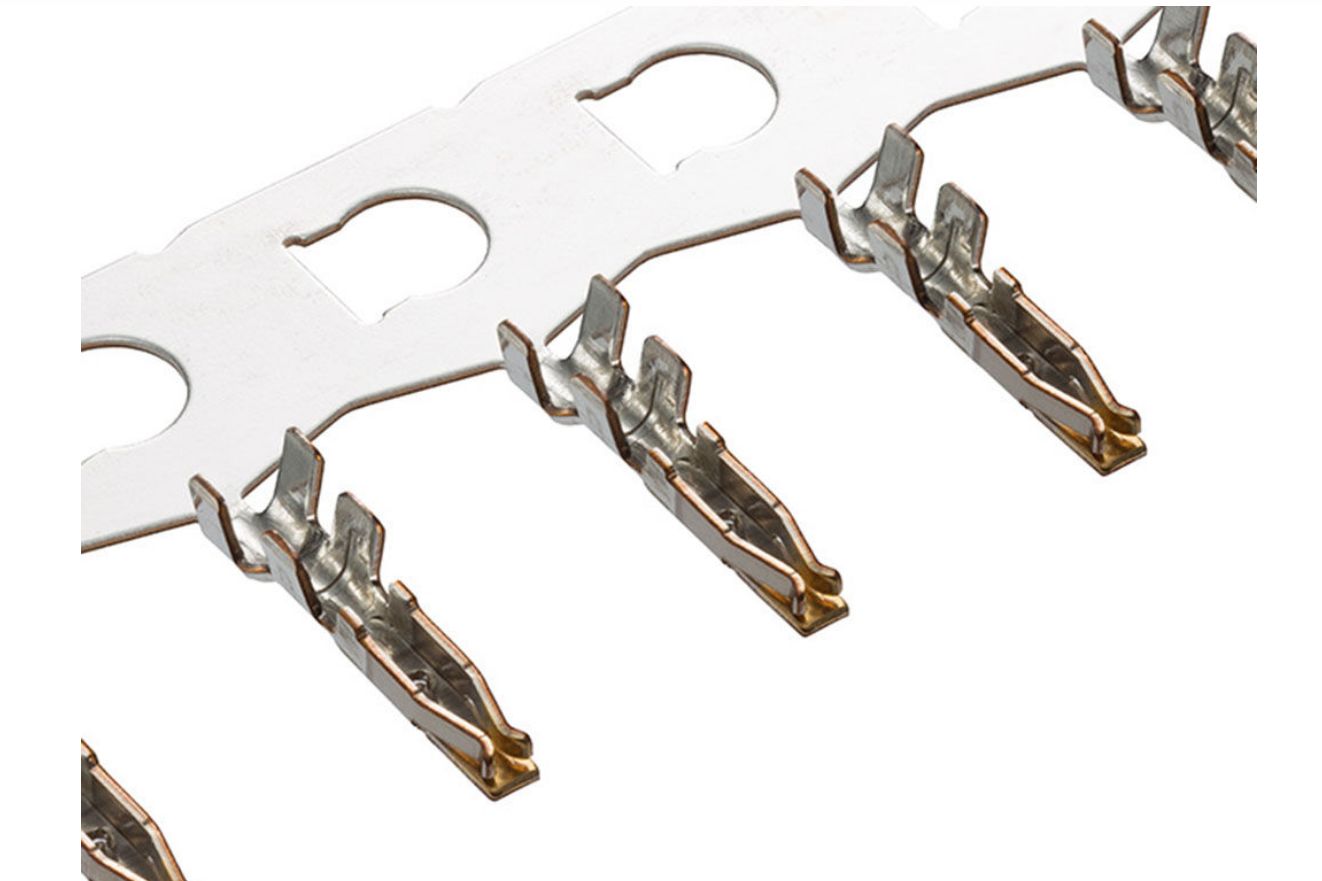

Molex Pico-Lock, 503765 Series Number Crimp Terminal, Female, 30AWG to 28AWG, Gold Plating

503765-0098 Molex Pico-Lock, 503765 Series Number Crimp Terminal, Female, 30AWG to 28AWG, Gold Plating
Molex

Product Information

Minimum Wire Size mm²:
0.05mm²
Maximum Wire Size mm²:
0.07mm²
Gender:
Female
Termination Method:
Crimp
Minimum Wire Size AWG:
30AWG
Contact Plating:
Gold
Series:
Pico-Lock
For Use With:
Pico-Lock Connector Housing
Maximum Wire Size AWG:
28AWG
Contact Material:
Copper Alloy
Series Number:
503765
RoHs Compliant
Checking for live stock

This is Pico-Lock 503765 Series Number Crimp Terminal Female 30AWG to 28AWG Gold Plating manufactured by Molex. The manufacturer part number is 503765-0098. On the other hand, the wire has 0.05mm² of minimum size. The wire has a maximum size of 0.07mm². In addition, female is the available "Gender" of the product. It allows crimp termination method. While the minimum wire size AWG includes 30awg. The high-quality gold is used as contact plating material. The product pico-lock, is a highly preferred choice for users. The product is highly suitable for pico-lock connector housing. Its maximum wires size includes 28awg. The product is made from sturdy copper alloy materials. It carries [Serial Number] serial number.

pdf icon
Application Specification Sheet - 503765-0098(Technical Reference)
pdf icon
Pico-Lock 1.0 Wire-to-Board Receptacle Crimp Terminal Contact - Datasheet(Technical Reference)
pdf icon
Pico-Lock SMT Wire-to-Board System - Brochure(Technical Reference)
pdf icon
Pico-Lock 1.0 Wire-to-Board Receptacle Crimp Terminal Contact - Drawing(Technical Reference)
pdf icon
Pico-Lock 1.0 Wire-to-Board System- Application Specification(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 503765-0098 on website for other similar products.
We accept all major payment methods for all products including ET13836066. Please check your shopping cart at the time of order.
You can order Molex brand products with 503765-0098 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Crimp Contacts category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex Pico-Lock, 503765 Series Number Crimp Terminal, Female, 30AWG to 28AWG, Gold Plating. You can also check on our website or by contacting our customer support team for further order details on Molex Pico-Lock, 503765 Series Number Crimp Terminal, Female, 30AWG to 28AWG, Gold Plating.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13836066 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13836066.
Yes. We ship 503765-0098 Internationally to many countries around the world.
