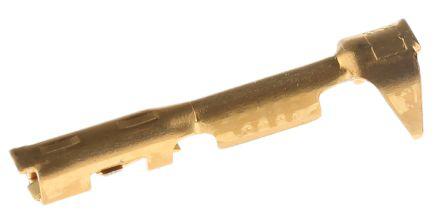

Amphenol FCI 47711-001LF

Enrgtech Part No: ET11601557
|
Manufacturer Part No:
47711-001LF
|
Manufacturer: Amphenol FCI

(0)

Product Information

The 47711-001LF by Amphenol FCI is a robust, high-quality connection socket designed to accommodate 28-32AWG wiring, furnished with crimp terminals for superior electrical conductivity. With its gold plating for enhanced signal transfer and resistance to corrosion, it offers unparalleled reliability in the world of wire-to-board connector solutions.

Gender:

Female

Termination Method:

Crimp

Minimum Wire Size AWG:

32AWG

Contact Plating:

Gold

Series:

Mini-PV

For Use With:

Mini-Latch Connector Housing

Maximum Wire Size AWG:

28AWG

Contact Material:

Brass

Manufacturer Standard Lead Time:

8 Weeks

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Series:

Mini-PV™, Basics+

Contact Finish:

Gold

Checking for live stock

The Amphenol FCI 47711-001LF Socket Contact is a high-quality electrical component for crimp connections in electronic applications. It is precisely engineered for 28 to 32 American Wire Gauge (AWG) wires. The contact is gold, ensuring excellent electrical conductivity and corrosion resistance. Its gold plating delivers exceptional conductivity and corrosion resistance, providing a dependable connection in various applications across multiple industries, including aerospace, telecommunications, industrial equipment, and consumer electronics.

Key Attributes of Amphenol FCI 47711-001LF Socket Contact Include:

Gold Plating: The socket contact features gold plating, offering superior conductivity and minimising signal loss or degradation risk. Gold is highly resistant to oxidation, ensuring a reliable and long-lasting connection.
Crimp Termination: The contact is designed for crimp termination, which provides a secure and gas-tight connection between the wire and the contact. Crimping ensures excellent mechanical stability, reducing the chances of accidental disconnection.
Wire Range: The socket contact is compatible with wires ranging from 28 to 32 AWG. This versatility allows it to be used in various applications employing small gauge wires.
Compact Design: The compact contact makes it suitable for space-constrained applications, such as in miniaturised electronic devices or densely populated circuit boards.

Benefits of Amphenol FCI 47711-001LF Socket Contact:

Reliable Connection: The gold plating ensures a low-resistance electrical pathway, resulting in reliable signal transmission. This feature is vital for maintaining data integrity or power connections in sensitive applications.
Corrosion Resistance: The gold plating provides excellent resistance to corrosion, making the contact ideal for use in harsh environments or applications where exposure to moisture or contaminants is likely.
Easy Installation: The crimp termination feature simplifies installation, reducing assembly time and ensuring consistent and secure connections. It also eliminates the need for soldering, making it suitable for automated assembly processes.

Where to Use the Amphenol FCI 47711-001LF Socket Contact?

Aerospace and Defence: The contact's reliability and corrosion resistance make it suitable for aerospace and defence applications, where robust and high-performance electrical connections are essential.
Telecommunications: It can be used in telecommunications equipment, such as routers, switches, and servers, to ensure reliable data transmission and signal integrity.
Industrial Applications: The contact finds applications in industrial equipment, including automation systems, control panels, and sensors, where dependable electrical connections are crucial for optimal performance.
Consumer Electronics: The compact layout and effortless installation make the socket contact appropriate for electronics like smartphones, tablets, and wearable devices.
