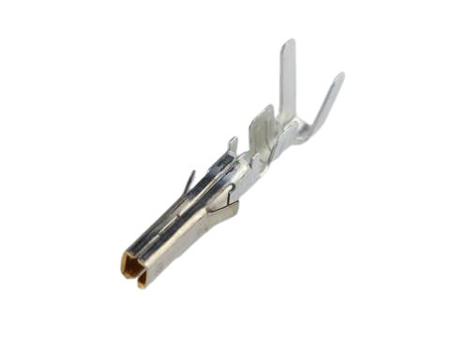

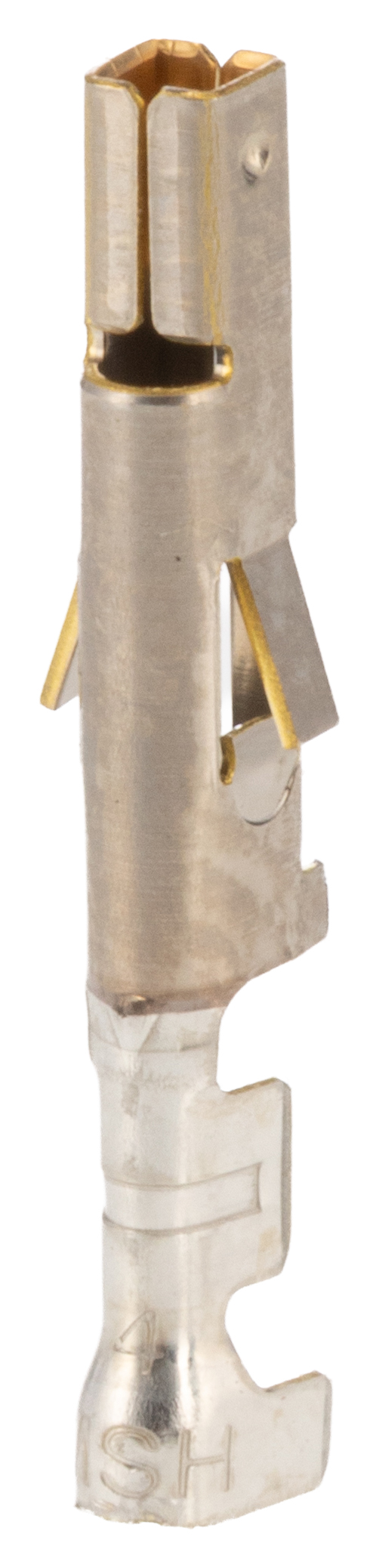

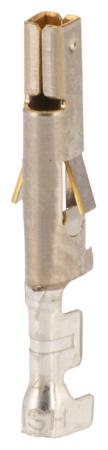

Molex MINI-FIT, 5556 Series Number Crimp Terminal, Female, 28AWG to 22AWG, Gold over Nickel Plating

Product Information
Minimum Wire Size mm²:
0.08mm²
Maximum Wire Size mm²:
0.35mm²
Maximum Contact Resistance:
10mΩ
Gender:
Female
Termination Method:
Crimp
Minimum Wire Size AWG:
28AWG
Contact Plating:
Gold
Series:
Mini-Fit
For Use With:
Mini-Fit Jr Connector Housing
Maximum Wire Size AWG:
22AWG
Contact Material:
Brass
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-40°C
Series Number:
5556
RoHs Compliant

Technical Documents
Molex
Datasheet(Technical Reference)
Checking for live stock

More Information

Mini-Fit Junior Crimp Contacts A range of Mini-Fit Jr. Crimp Terminal Contacts. HCS Contacts Series 44476, 44478 and 44485: provide an additional 3A/circuit, whilst utilising the same shells. Molex Minifit Jr.™ Series The Mini-Fit Jr.™ series is a range of single and dual row, high current/high...
Mini-Fit Junior Crimp Contacts A range of Mini-Fit Jr. Crimp Terminal Contacts. HCS Contacts Series 44476, 44478 and 44485: provide an additional 3A/circuit, whilst utilising the same shells. Molex Minifit Jr.™ Series The Mini-Fit Jr.™ series is a range of single and dual row, high current/high density wire-to-wire (free or via a panel) and wire-to-board connectors, for both power and signal applications. HCS contacts provide even greater power in the same size shells. The Molex Mini-Fit Jr. range has: 4.2mm pitch, fully isolated terminals, positive housing locks, low-engagement forces and polarized housings. Products in the Mini-Fit Jr. range are UL recognized, CSA approved and TUV licensed as well as all components being lead-free and RoHS compliant. Housing Nylon 6/6 94V-2 OR Nylon 6/6 94V-0 Terminals Tin plated brass Voltage rating 600V (r.m.s.) Standard contacts HCS contacts Current rating 2-way 9A 12A 4, 6-way 8A 11A 8, 10-way 7A 10A 12-way and greater 9A Contact resistance 10mΩ max. Insulation resistance 1000MΩ min. Dielectric strength 1500V a.c.

Read more

Alternative products

FAQs

Yes. You can also search 39-00-0434 on website for other similar products.

We accept all major payment methods for all products including ET10002193. Please check your shopping cart at the time of order.

You can order Molex brand products with 39-00-0434 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Crimp Contacts category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Molex MINI-FIT, 5556 Series Number Crimp Terminal, Female, 28AWG to 22AWG, Gold over Nickel Plating. You can also check on our website or by contacting our customer support team for further order details on Molex MINI-FIT, 5556 Series Number Crimp Terminal, Female, 28AWG to 22AWG, Gold over Nickel Plating.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET10002193 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10002193.

Yes. We ship 39-00-0434 Internationally to many countries around the world.
