Manufacturer : TE Connectivity
Manufacturer Part No : 917804-2
Enrgtech Part No : ET10001311
Product Range : PolySwitch RXEF Series

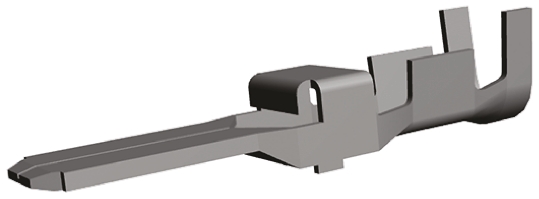

TE Connectivity Dynamic 5000 Crimp Terminal Contact, Male, 1.25mm² to 2mm², 16AWG to 14AWG, Gold Plating

TE Connectivity Dynamic 5000 Crimp Contacts The D-5000 range of high current crimp receptacle and tab contacts are suitable for use in the Dynamic Series D-5000 housings. The contacts have a twist resistant box shape design and three points of contact for a reliable electrical performance. These Dynamic 5000 series connector crimp contacts are available with gold plating as standard for high reliability or tin plating for more economical market needs. Silver plated versions of these contacts are also available for use in high amperage applications. Available with a range of wire sizes from 20 AWG to 12 AWG these D-5000 crimp contacts offer the customer a wide choice depending on specifications, application and cost. Features & Benefits • Twist resistant box shape design • Three points of contact for reliable electrical performance • Manufactured from a high conductivity material to support current rating • Gold plated versions for high reliability • Silver plated versions for high amperage applications • Wire range of wire sizes from 20 AWG to 12 AWG Product Application Information The Dynamic 5000 series connectors are designed for use with high current power line applications Note For mating D-5200 Series Housings see stock number 680-1001 typical. TE Connectivity Dynamic 5000 Series

Product Information

Series : Dynamic 5000
Maximum Wire Size mm² : 2mm²
Gender : Male
Minimum Wire Size AWG : 16AWG
Contact Plating : Gold
Termination Method : Crimp
For Use With : Dynamic 5000 Connector Housing
Maximum Wire Size AWG : 14AWG
Minimum Wire Size mm² : 1.25mm²
Contact Material : Copper Alloy

Technical Documents

  • Contact male crimp 16-14AWG Au S D-5 (Technical Reference)

Availability:
0
in stock
Check now

Rate:
  • 6000
    +
    £ 0.503

Qty:
