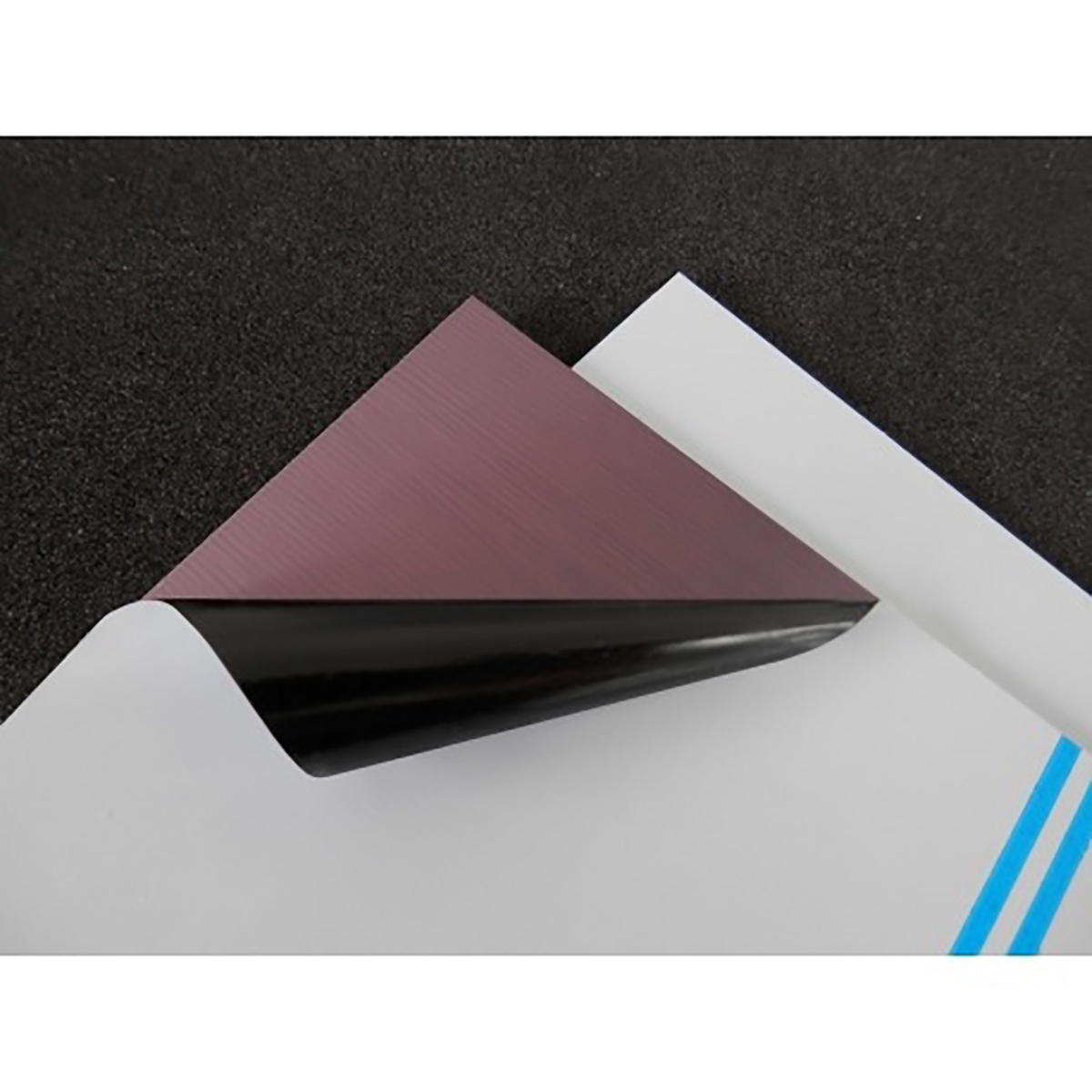

The CIF AA20 represents a pinnacle in the realm of electronics prototyping, offering a robust and versatile platform for various applications. This single-sided photoresist board is a testament to advanced engineering, crafted to cater to the intricate needs of modern electronic circuit design. The board boasts a 35μm thick layer of copper, meticulously applied to ensure uniform conductivity and exceptional adherence to the FR4 substrate. This thickness strikes a perfect balance between durability and ease of etching, suitable for both amateur and professional applications.

High-Grade FR4 Substrate

At its core, the CIF AA20 is built on a high-quality FR4 substrate. This material is renowned for its excellent electrical insulation, as well as its mechanical strength and resistance to moisture, making it an ideal option for durable and reliable circuit boards.

The CIF AA20, Single Sided Photoresist Board FR4 35μm Copper Thick, 300 x 200 x 1.6mm: Unique Features and Benefits

The combination of FR4 material and a thick copper layer ensures that the board is not only robust but also has a long lifespan, even in challenging environments.
The photoresist coating on the CIF AA20 allows for precise and detailed circuit patterning.
The board's size and the quality of its photoresist coating make it easy to handle and process.

Optimal Size for Various Projects

Measuring 300 x 200 x 1.6mm, the CIF AA20 is sized to accommodate a wide range of circuit designs, from simple prototypes to more complex assemblies. This dimension makes it a versatile choice for various users, from hobbyists to professional engineers.

Application Versatility of the Single-Sided Photoresist Board

The CIF AA20 Single-Sided Photoresist Board is a high-quality, versatile, and user-friendly solution for a wide range of electronics, such as:

Versatile in Electronics Prototyping: The CIF AA20 is ideal for a variety of electronic projects, including DIY hobbyist projects, educational purposes in schools and universities, and professional prototype development in research and industry.
Custom PCB Creation: Its adaptability and precision make it perfect for creating custom printed circuit boards (PCBs) for specialised applications, ranging from bespoke consumer electronics to tailored industrial solutions.

FR4 Laminate Data Sheet(Technical Reference)

UL File E101749(Technical Reference)

INSTRUCTIONS FOR USE FOR C.I.F. PRE SENSITISED(Technical Reference)

Design Change(Technical Reference)
