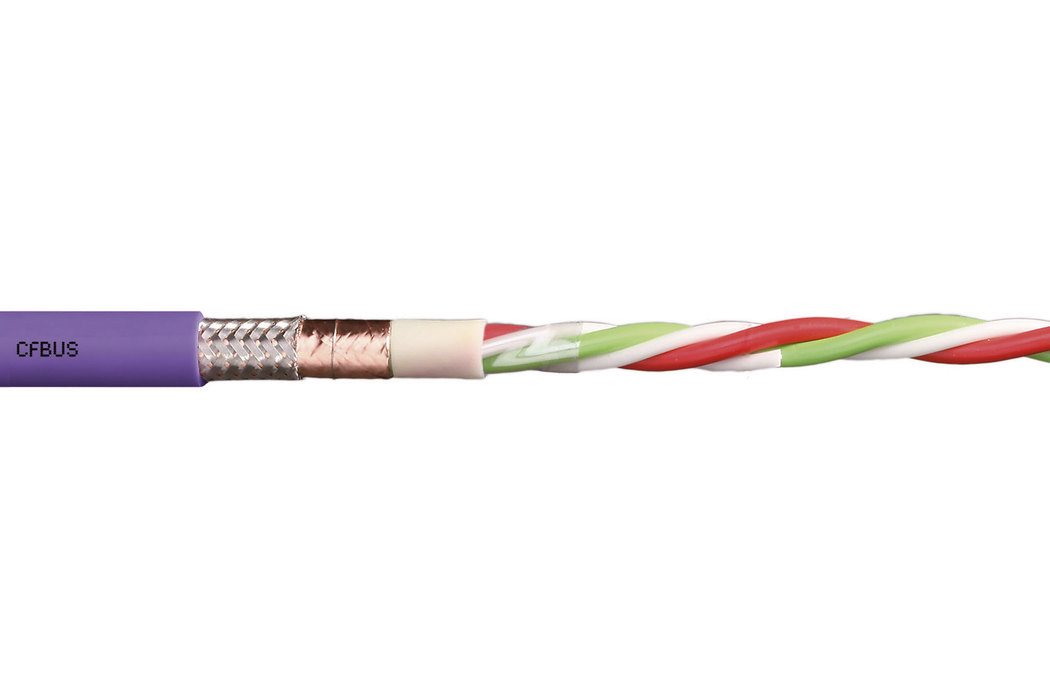

Profibus (minimum bend radius 10 x d) St
Product Information
Screened/Unscreened:
Screened
Earth Cable:
No
Conductor Resistance:
79 Ω/km
Oil Resistant:
Yes
Bedding Material:
PVC
American Wire Gauge:
24 AWG
Number of Cores:
2
Outer Diameter:
9mm
Standards Met:
CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1
Cable Shape:
Multicore
Maximum Operating Temperature:
+70°C
Voltage Rating:
50 V
Minimum Bend Radius:
5 x D
Fire Behaviour:
Flame Retardant
Armoured:
No
Length:
25m
Sheath Material:
TPE
Current Rating:
5 A
Screen Type:
Tinned Copper Braid
Conductor Material:
Copper
Series:
chainflex CFBUS
Sheath Colour:
Purple
Cross Sectional Area:
0.25 mm²
Minimum Operating Temperature:
-35°C
Insulation Material:
TPE
Checking for live stock
FAQs
Yes. You can also search CFBUS.001 on website for other similar products.
We accept all major payment methods for all products including ET17976466. Please check your shopping cart at the time of order.
You can order Igus brand products with CFBUS.001 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Control Cable category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Profibus (minimum bend radius 10 x d) St. You can also check on our website or by contacting our customer support team for further order details on Profibus (minimum bend radius 10 x d) St.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17976466 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Igus" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17976466.
Yes. We ship CFBUS.001 Internationally to many countries around the world.
This is Profibus (minimum bend radius 10 x d) St manufactured by Igus. The manufacturer part number is CFBUS.001. Screen Options - screened. It has an earth cable included no . The conductor has 79 ω/km resistance. Additionally, it is oil resistant yes . It bedding is made up of pvc material . Features 24 awg - American Wire Gauge. The product consists of 2 cores. Its outer diameter is 9mm. The product complies with all safety standards, such as ce, cei 20-35, cruus, csa, ctp, din en 50363-4-1, eac, ft1, iec 60332-1-2, nfpa 79, ul, vw-1. Moreover, this cable has a multicore shape. It has a maximum operating temperature of +70°c. Moreover, the product has a nominal 50 v voltage rating. It bears 5 x d of minimum bend radius. The product has a flame retardant fire behaviour. It is armoured no . Its accurate length is 25m. The sheath is constructed from durable and adorable tpe material. The product has a current rating of 5 a. It has a/an tinned copper braid type screen . The conductor is made from copper material. The product chainflex cfbus, is a highly preferred choice for users. The sheath has an adorable purple colour. The product has 0.25 mm² cross section area. Whereas, the minimum operating temperature of the product is -35°c. It has a robust tpe insulation material.
