Contactor Application:
Motor Control
Coil Voltage:
24 V dc
Pole and Throw Configuration:
3P
Width:
90 mm
Contact Current:
12A
Control Circuit Voltage Uc:
24 V
Function:
Reversing
Operational Current Ie:
16A
Product Type:
Reversing Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Spring Loaded Clamp
Minimum Operating Temperature:
-40°C
Length:
11cm
Standards/Approvals:
UL 508, IEC 60947-5-1, IEC 60947-4-1, IEC 60335-1, EN 60947-5-1, EN 60947-4-1
Number of Auxiliary Contacts:
1
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
Plate
Better World Product:
Yes
Series:
LC2D
Depth:
95mm
Normal State Configuration:
1 NO/1 NC
Contact Voltage:
690V
Power Rating:
5.5kW
Number of Poles:
3
Coil Voltage:
24VDC
Termination Style:
Spring Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:

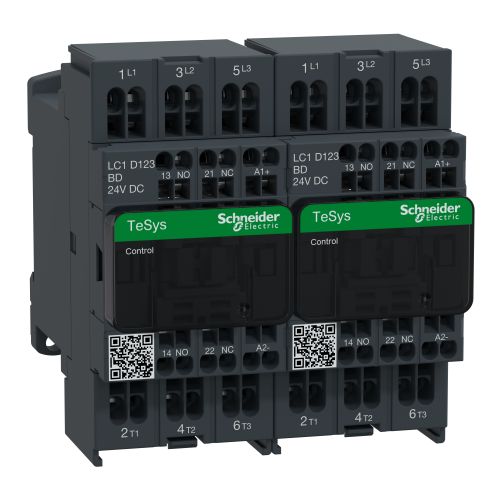

LC2D123BD
Coil Power:
-
Must Operate Voltage:
16.8 VDC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
72.45 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
12 A
Features:
Auxiliary Contacts, Diode
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 300VDC - Max
Release Time:
24 ms
Packaging:
Box
Contact Material:
-
