Contactor Application:
Motor Control, Resistive Load
Coil Voltage:
24 V dc
Pole and Throw Configuration:
3P
Width:
55 mm
Contact Current:
65A
Control Circuit Voltage Uc:
24 V
Function:
Changeover Contactor
Operational Current Ie:
80A
Product Type:
Contactor
Maximum Operating Temperature:
70°C
Terminal Type:
Ring Cable Lug
Length:
15.2cm
Standards/Approvals:
IEC 60335-1, UL 60947-4-1, CSA C22.2 Nr. 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1
Number of Auxiliary Contacts:
1
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
Rail
Better World Product:
Yes
Series:
LC1D
Depth:
120mm
Normal State Configuration:
1 NO/1 NC
Contact Voltage:
690V
Number of Poles:
3
Minimum Operating Temperature:
-40°C
Coil Voltage:
24VDC
Termination Style:
Box Lug
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
Switching Voltage:
690VAC - Max
Coil Power:
-
REACH Status:
REACH info available upon request
Must Operate Voltage:
19.2 VDC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
65 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
65 A
Features:
Auxiliary Contacts, Diode
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys

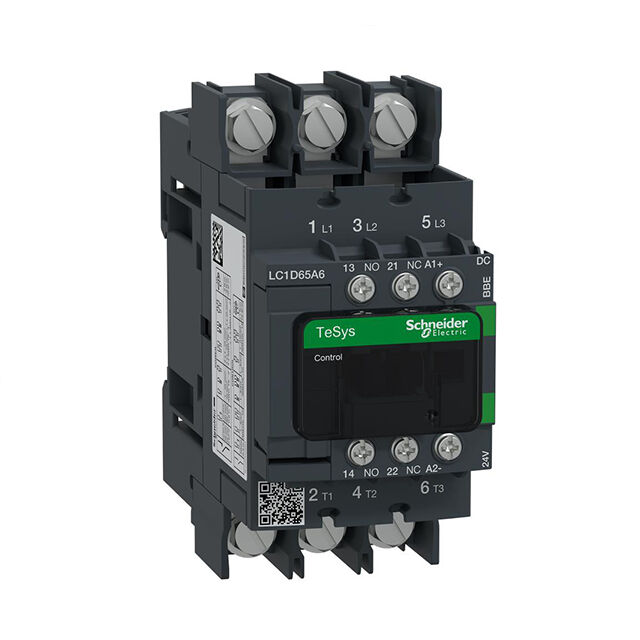

title:
LC1D65A6BBE
Release Time:
80 ms
Packaging:
Box
Contact Material:
-
