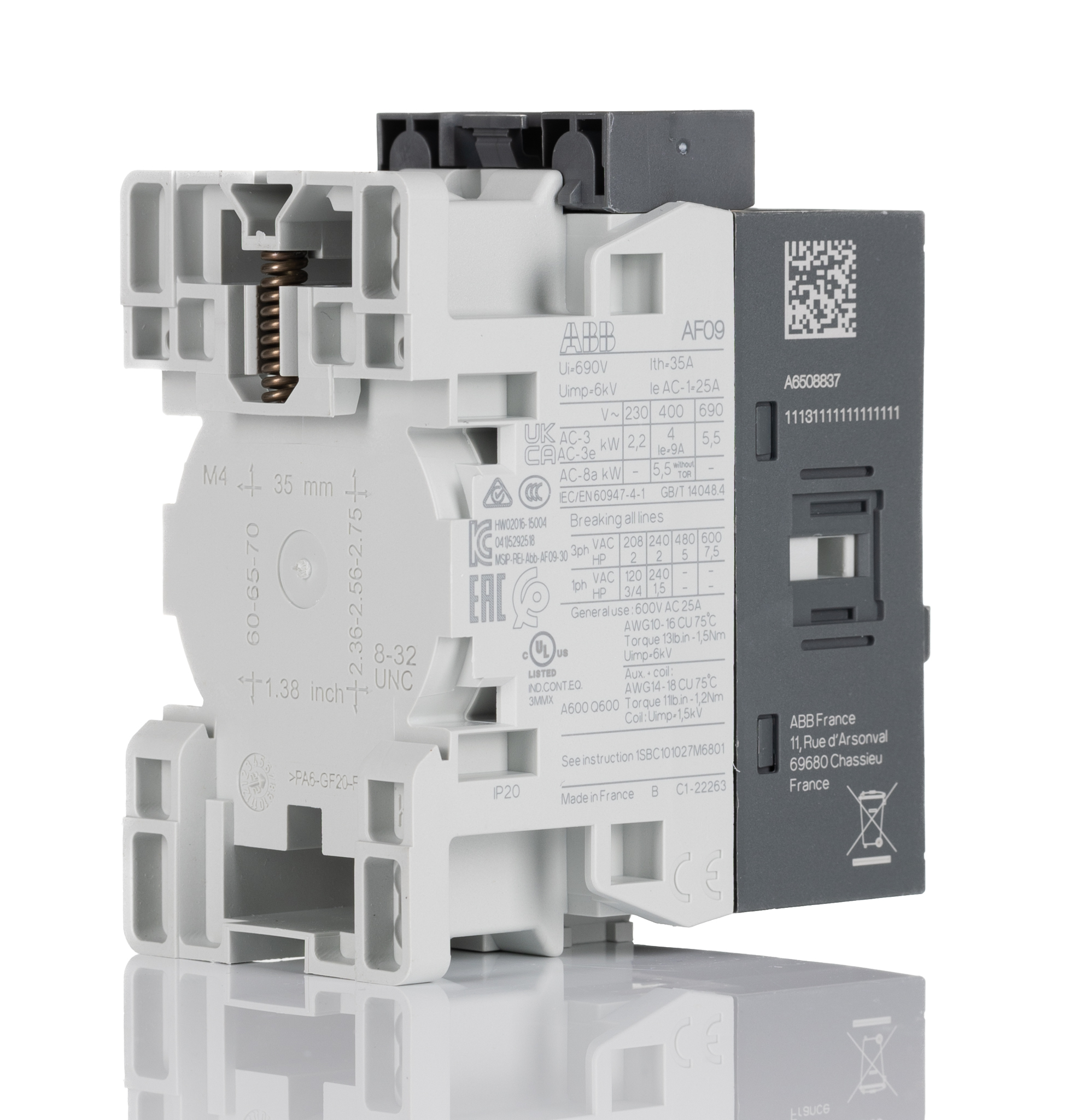

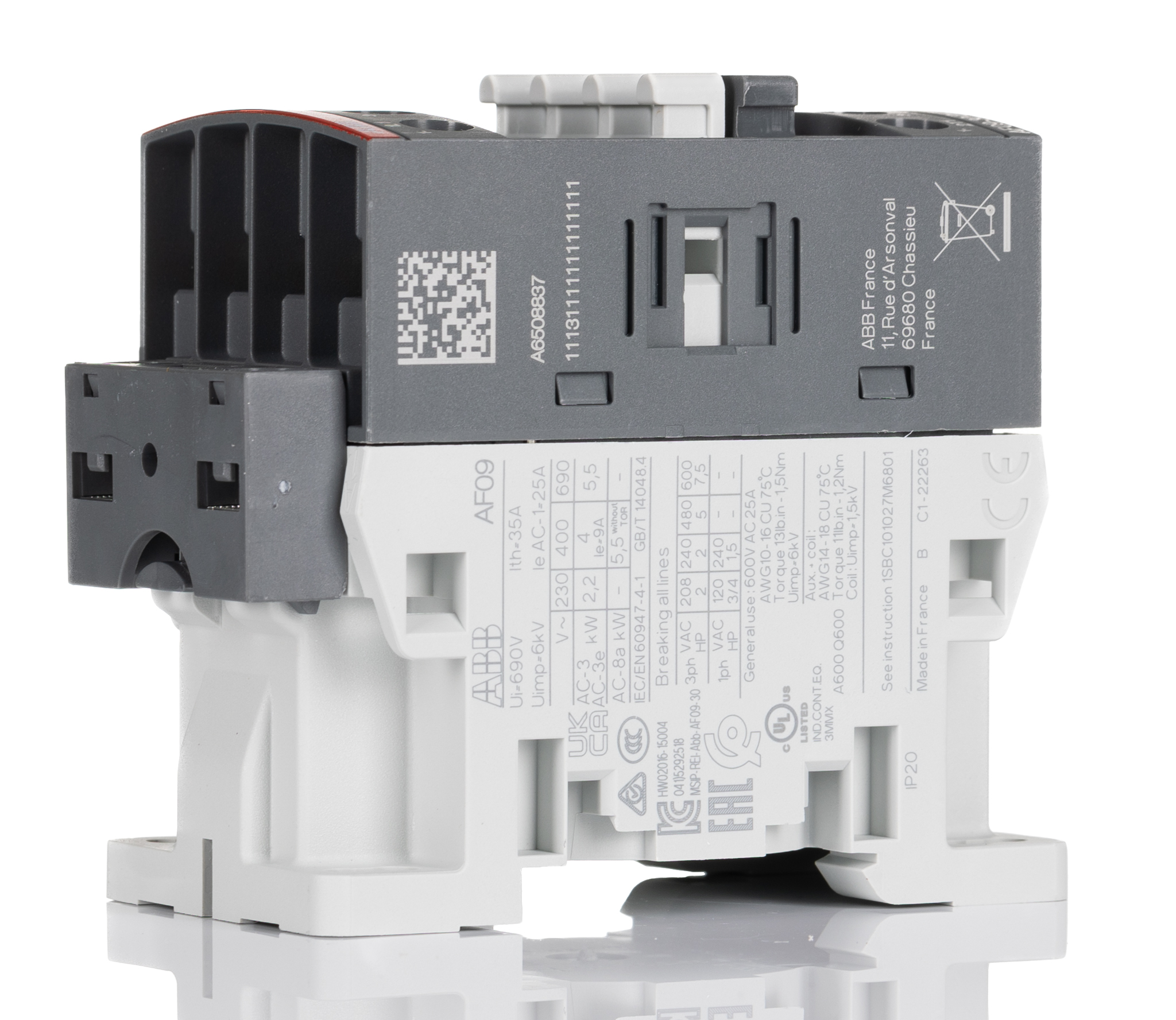

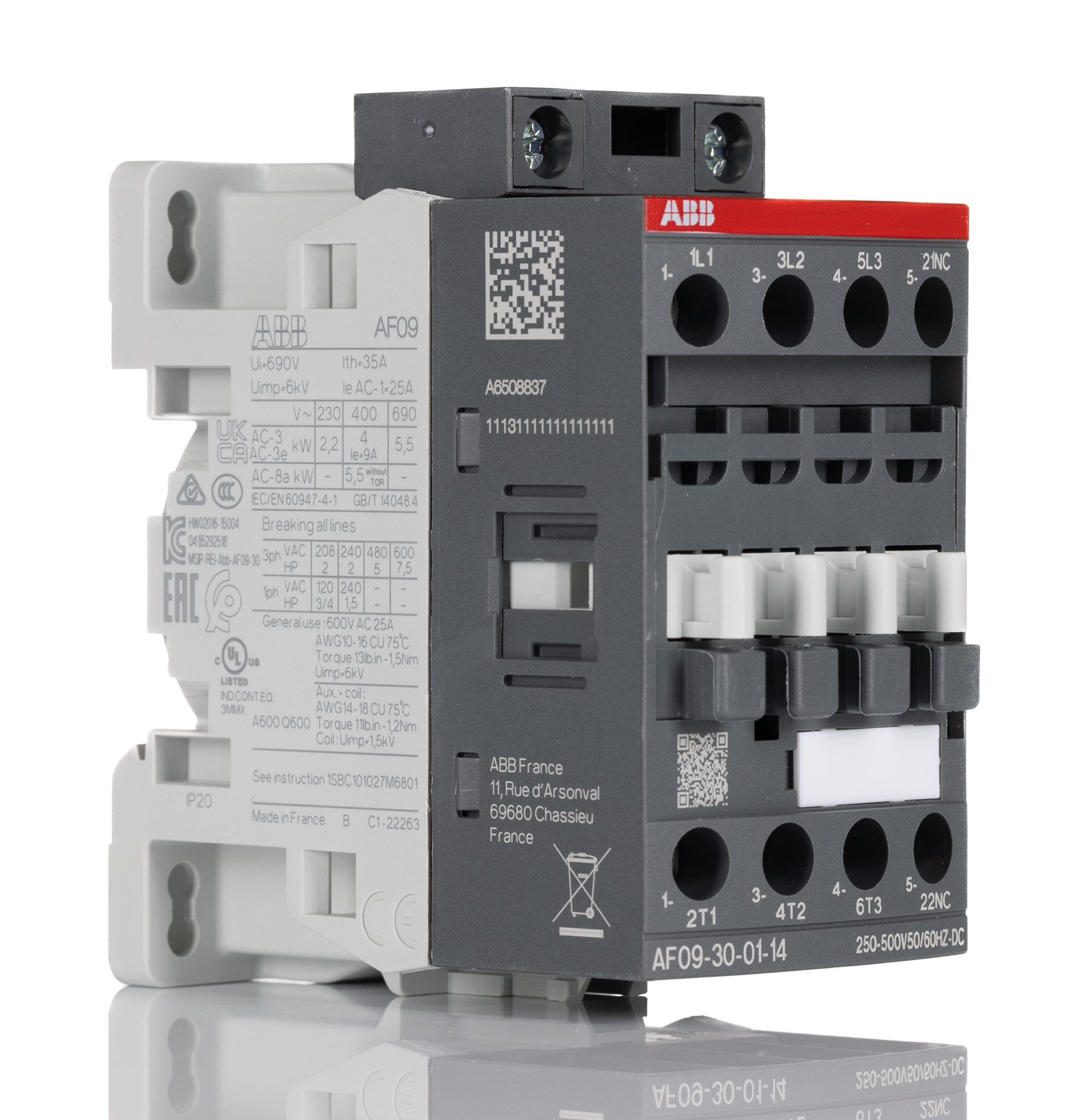

ABB AF09-30-01-14 Contactor, 250 → 500 V Coil, 3 Pole, 25 A, 5.5 kW, 3NO+1NC

1SBL137001R1401-AF09-30-01-14 ABB AF09-30-01-14 Contactor, 250 → 500 V Coil, 3 Pole, 25 A, 5.5 kW, 3NO+1NC
1SBL137001R1401 AF09-30-01-14
1SBL137001R1401 AF09-30-01-14
ABB

Product Information

Minimum Operating Temperature:
-60°C
Contact Current Rating:
25 A
Maximum Operating Temperature:
+80°C
Control Voltage:
250 → 500 V
Coil Voltage:
250 → 500 V
Length:
86mm
Pole and Throw Configuration:
3P
Mounting Style:
DIN Rail Mount
Width:
45mm
Depth:
77mm
Number Of Auxiliary Contacts:
1
Normal State Configuration:
3NO+1NC
Range:
AF09-30-01-14
Auxiliary Contact Configuration:
1NC
Power Rating:
5.5 kW
Number of Poles:
3
Terminal Type:
Screw
RoHs Compliant
Checking for live stock

This is AF09-30-01-14 Contactor 250 → 500 V Coil 3 Pole 25 A 5.5 kW 3NO+1NC manufactured by ABB. The manufacturer part number is 1SBL137001R1401 AF09-30-01-14. Whereas, the minimum operating temperature of the product is -60°c. The rated contact current is 25 a. It has a maximum operating temperature of +80°c. It has 250 → 500 v control voltage . The coil voltage of the product is 250 → 500 v. Its accurate length is 86mm. It has 3p pole and throw configuration. The product is available in din rail mount style. Furthermore, the product is 45mm wide. The product comes in 77mm depth. It is composed of [Number of Auxiliary Contacts] auxiliary contacts. The normal state configuration includes 3no+1nc. It features af09-30-01-14 range. In addition, it has a standard 1nc auxiliary contact configuration . Feature 5.5 kw of power rating. It has equipped with 3 poles. The terminal is a screw type.

pdf icon
Datasheet - 1SBL137001R1401(Technical Reference)
pdf icon
Instruction Sheet - 1SBL137001R1401 AF09-30-01-14(Technical Reference)
pdf icon
Catalogue - Motor Protection & Control(Technical Reference)
