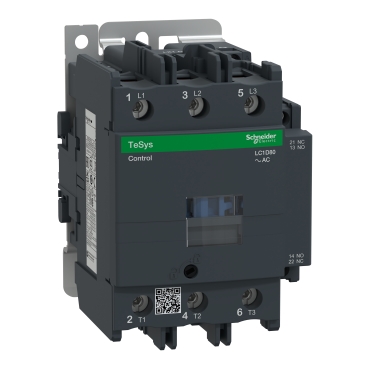

Contactor Application:
Motor Control, Resistive Load
Coil Voltage:
24 V
Pole and Throw Configuration:
3
Width:
85 mm
Contact Current:
80A
Control Circuit Voltage Uc:
24 V
Operational Current Ie:
80A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw Clamp
Length:
130mm
Standards/Approvals:
CB scheme, CCC, CE, CSA, CSA C22.2 No 14, EAC, EN 60947-4-1, EN 60947-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, IEC 60947-4-1, IEC 60947-5-1, Marine, UKCA, UL, UL 60335-2-40:Annex JJ, UL 60947-4-1
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
LC1D
Depth:
130mm
Normal State Configuration:
3 NO
Contact Voltage:
690V
Power Rating:
45kW
Number of Poles:
3
Minimum Operating Temperature:
-40°C
