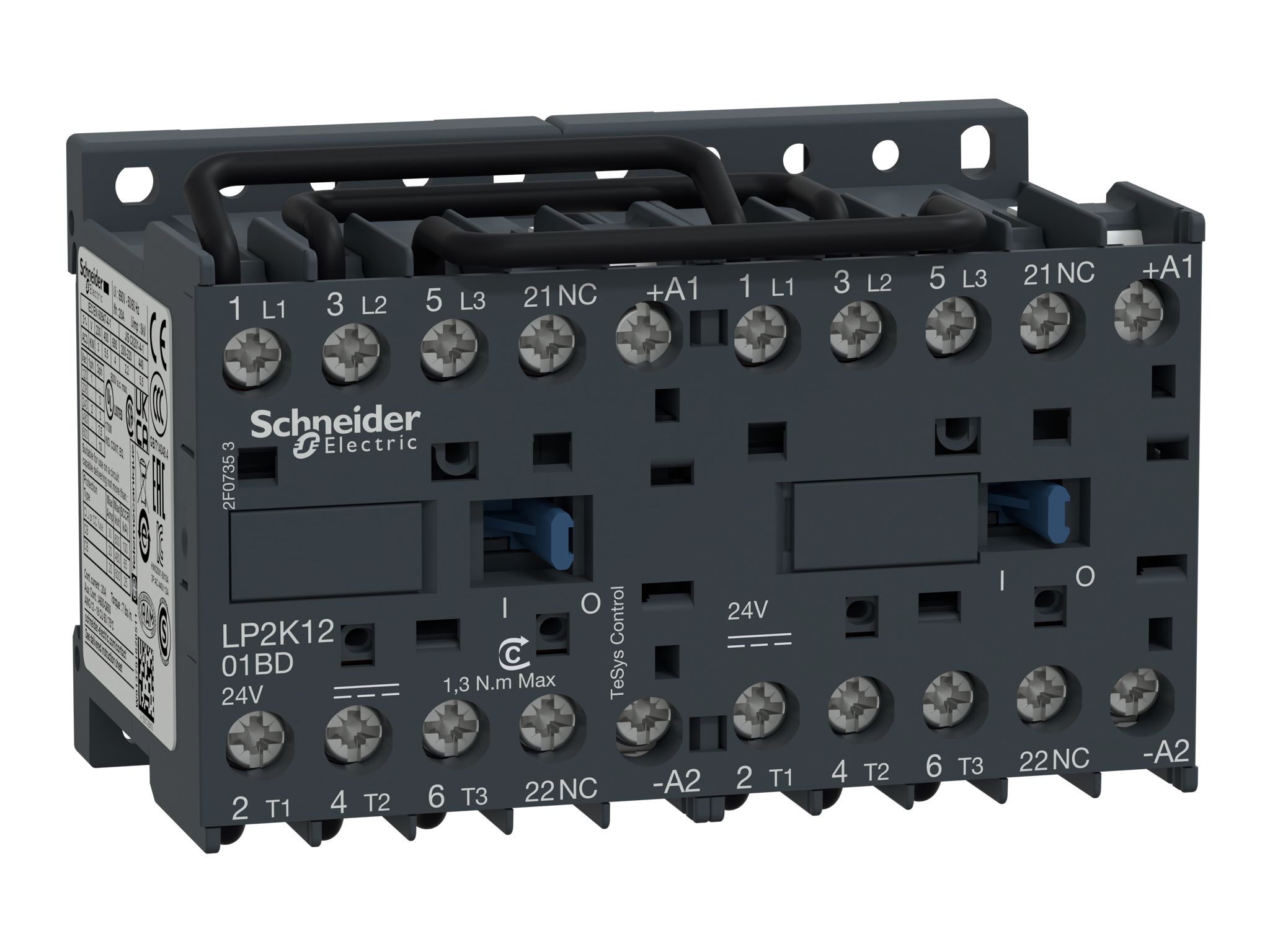

Schneider Electric TeSys K LP2K 3 Pole Reversing Contactor, 3NO (Main), NC (Auxiliary), 12 A, 24 V dc Coil

Enrgtech Part No: ET16748103
|
Manufacturer Part No:
LP2K1201BD
|
Manufacturer: Schneider Electric

LP2K1201BD Schneider Electric TeSys K LP2K 3 Pole Reversing Contactor, 3NO (Main), NC (Auxiliary), 12 A, 24 V dc Coil

Product Information

Contactor Application:

Motor Control

Coil Voltage:

24 V dc

Pole and Throw Configuration:

Width:

90 mm

Contact Current:

12A

Control Circuit Voltage Uc:

24 V dc

Function:

Reversing

Operational Current Ie:

12A

Product Type:

Reversing Contactor

Maximum Operating Temperature:

50°C

Terminal Type:

Screw

Length:

58mm

Checking for live stock

The Schneider Electric LP2K1201BD is a high-performance, compact reversing contactor specifically engineered for seamless motor control and industrial automation. Part of the renowned TeSys K series, this 3-pole device manages loads up to 12A and 5.5kW with remarkable efficiency. Featuring a standard 24V DC coil and integrated auxiliary contacts, it ensures reliable mechanical interlocking in a space-saving 90mm frame, making it a staple for modern electrical panels requiring precision and durability.

Why Should You Buy the Product?

This Schneider Electric LP2K1201BD reversing contactor offers a space-efficient solution for motor reversal with an impressive mechanical life of five million cycles. Its robust design ensures continuous operation even in demanding industrial environments.

Compact modular design facilitates easy DIN rail or screw mounting.
Surge-resistant construction with an 8kV rated impulse withstand voltage.
Pre-wired power connections simplify installation and reduce wiring errors.

Feature Highlights

Reversing Capability: Integrated mechanical interlock for safe motor direction control.
Low Power Consumption: 3W hold-in power optimises energy efficiency.
High Durability: Built to withstand up to 3,600 operating cycles per hour.
Auxiliary Signal: Includes one normally closed (NC) contact for feedback circuits.

Application Areas

Industrial Automation: Ideal for conveyor systems, fans, and small pumps.
Motor Starters: Used in reversing motor starters for machinery and equipment.
Panel Building: Perfect for space-constrained control cabinets and HVAC systems.
