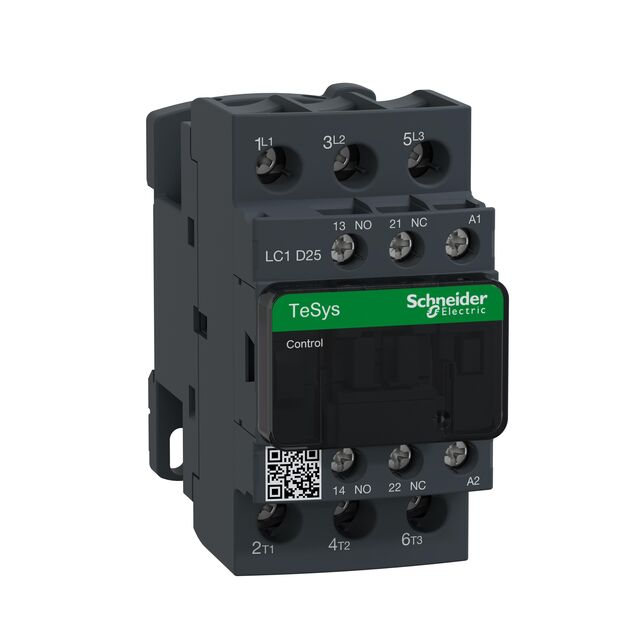

Tesys D LC1D 3 Pole Contactor, 25 A, 11 kW, 230 V ac Coil

LC1D25P7 Tesys D LC1D 3 Pole Contactor, 25 A, 11 kW, 230 V ac Coil
LC1D25P7
LC1D25P7
ET14151357
ET14151357
Contactors
Contactors
LC1D25P7 Tesys D LC1D 3 Pole Contactor, 25 A, 11 kW, 230 V ac CoilSchneider Electric
LC1D25P7 Tesys D LC1D 3 Pole Contactor, 25 A, 11 kW, 230 V ac CoilSchneider Electric
LC1D25P7 Tesys D LC1D 3 Pole Contactor, 25 A, 11 kW, 230 V ac Coil
LC1D25P7
LC1D25P7
ET14151357
ET14151357
LC1D25P7 Tesys D LC1D 3 Pole Contactor, 25 A, 11 kW, 230 V ac Coil
Schneider Electric

Product Information

Coil Voltage:
230 V ac
Pole and Throw Configuration:
3P
Width:
45mm
Range:
TeSys D
Function:
Motor Control
Contact Current Rating:
25 A
Maximum Operating Temperature:
+60°C
Terminal Type:
Screw
Minimum Operating Temperature:
-40°C
Control Voltage:
230 V ac
Length:
85mm
Better World Verification:
Green Premium
Better World Product:
Yes
Series:
LC1D
Depth:
92mm
Mounting Style:
DIN Rail
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Auxiliary Contact Configuration:
1NO + 1NC
Power Rating:
11 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Coil Voltage:
230VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:
LC1D25P7
Coil Power:
-
Must Operate Voltage:
195.5 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
22 ms
Must Release Voltage:
69 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
25 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 300VDC - Max
Release Time:
19 ms
Packaging:
Box
Contact Material:
-
Checking for live stock

3 pole Contactors, AC Controlled, under 18kW power ratingUtilisation category AC3415 Vac switching voltagePole Contact Composition: 3 NOAuxiliary Contacts: 1 N/O + 1 N/CSwitching PowerCurrent RatingHeight (mm)Width (mm)Depth (mm)4 kW9 A7745865.5 kW12 A7745869 kW18 A77458611 kW25 A85459215 kW32 A85459218.5 kW38 A85459222 kW40 A1277511925 kW50 A1277511937 kW65 A1277511945 kW80 A1278513059 kW115 A15812013680 kW150 A158120136Part numbers ending in "L"Low-consumption coilsLC1Dxx3xxConnection via spring terminal or screw terminal.ApprovalsUL and CSA

pdf icon
Datasheet LC1D25P7(Technical Reference)
pdf icon
UL E164862(Technical Reference)
pdf icon
CSA 43364(Technical Reference)
pdf icon
LC1D Catalogue(Technical Reference)
pdf icon
Catalog 2023(Technical Reference)
pdf icon
Green Premium Ecolabel(Technical Reference)
pdf icon
TeSys-to-Everlink-cross-references(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Instruction Sheet - LC1D(Technical Reference)
