Contactor Application:
Resistive Load, Motor Control
Coil Voltage:
400 V ac
Pole and Throw Configuration:
3
Width:
85 mm
Contact Current:
80A
Control Circuit Voltage Uc:
400 V
Function:
Motor Control
Operational Current Ie:
80A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Length:
127mm
Standards/Approvals:
UL, RoHS, IEC, EAC, CSA, CCC
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
LC1D
Depth:
125mm
Normal State Configuration:
3 NO
Contact Voltage:
1kV
Power Rating:
45kW
Number of Poles:
3
Minimum Operating Temperature:
-5°C
Coil Voltage:
400VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:

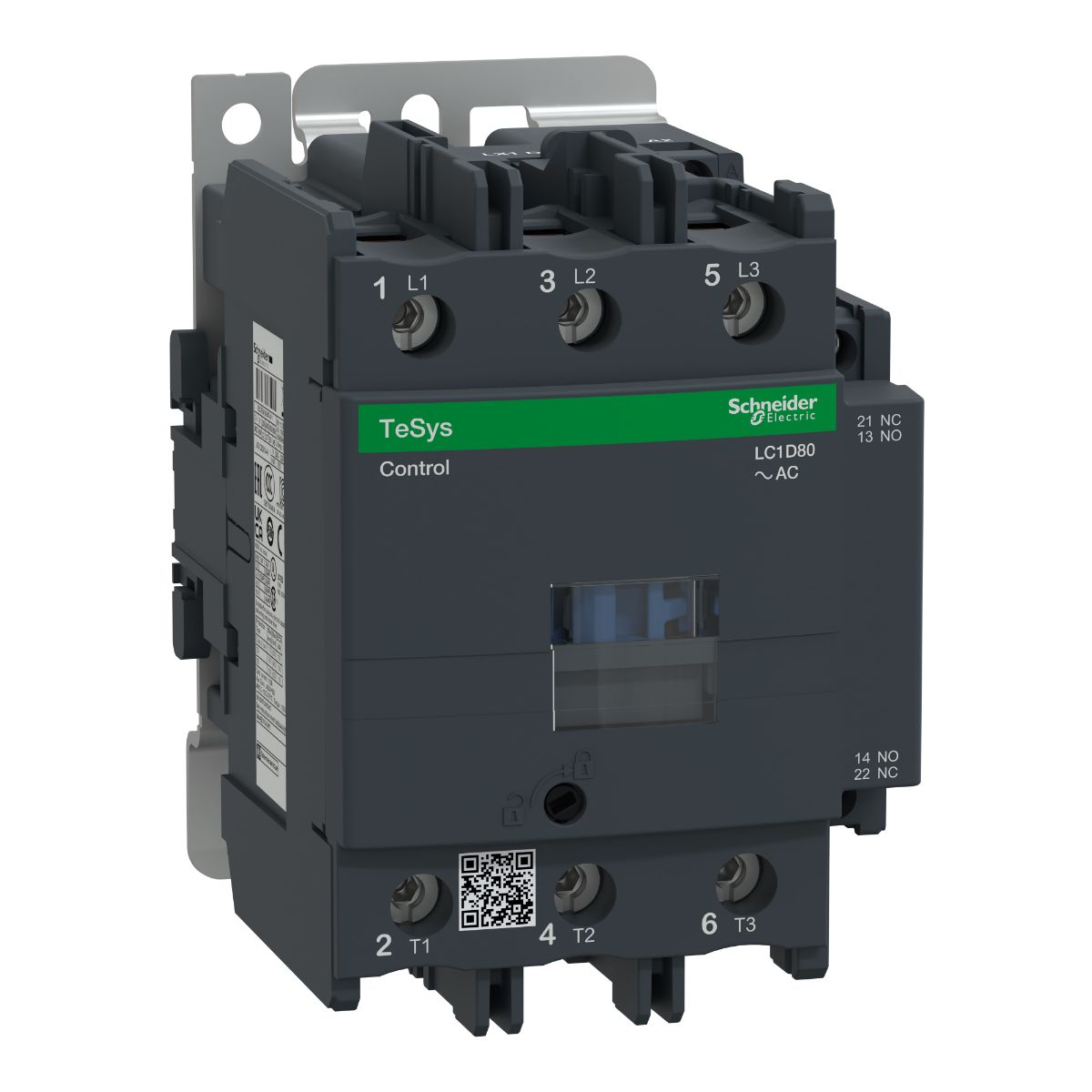

LC1D80V7
Coil Power:
-
Must Operate Voltage:
340 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
35 ms
Must Release Voltage:
120 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
80 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 300VDC - Max
Release Time:
20 ms
Packaging:
Box
Contact Material:
-
