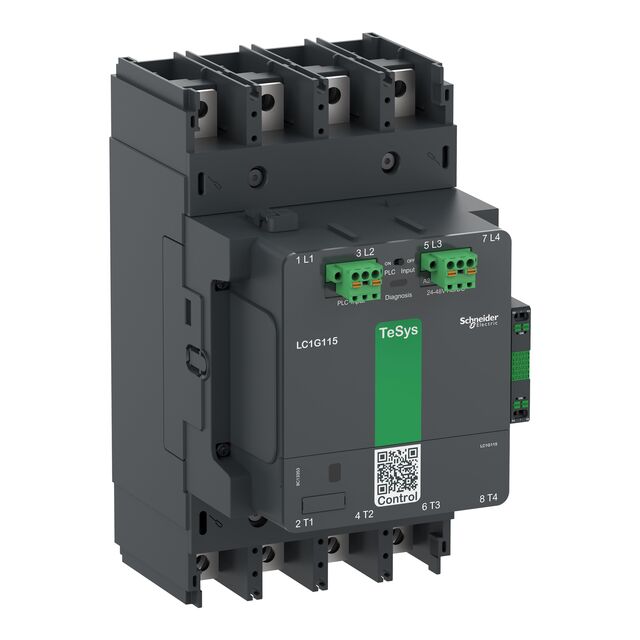

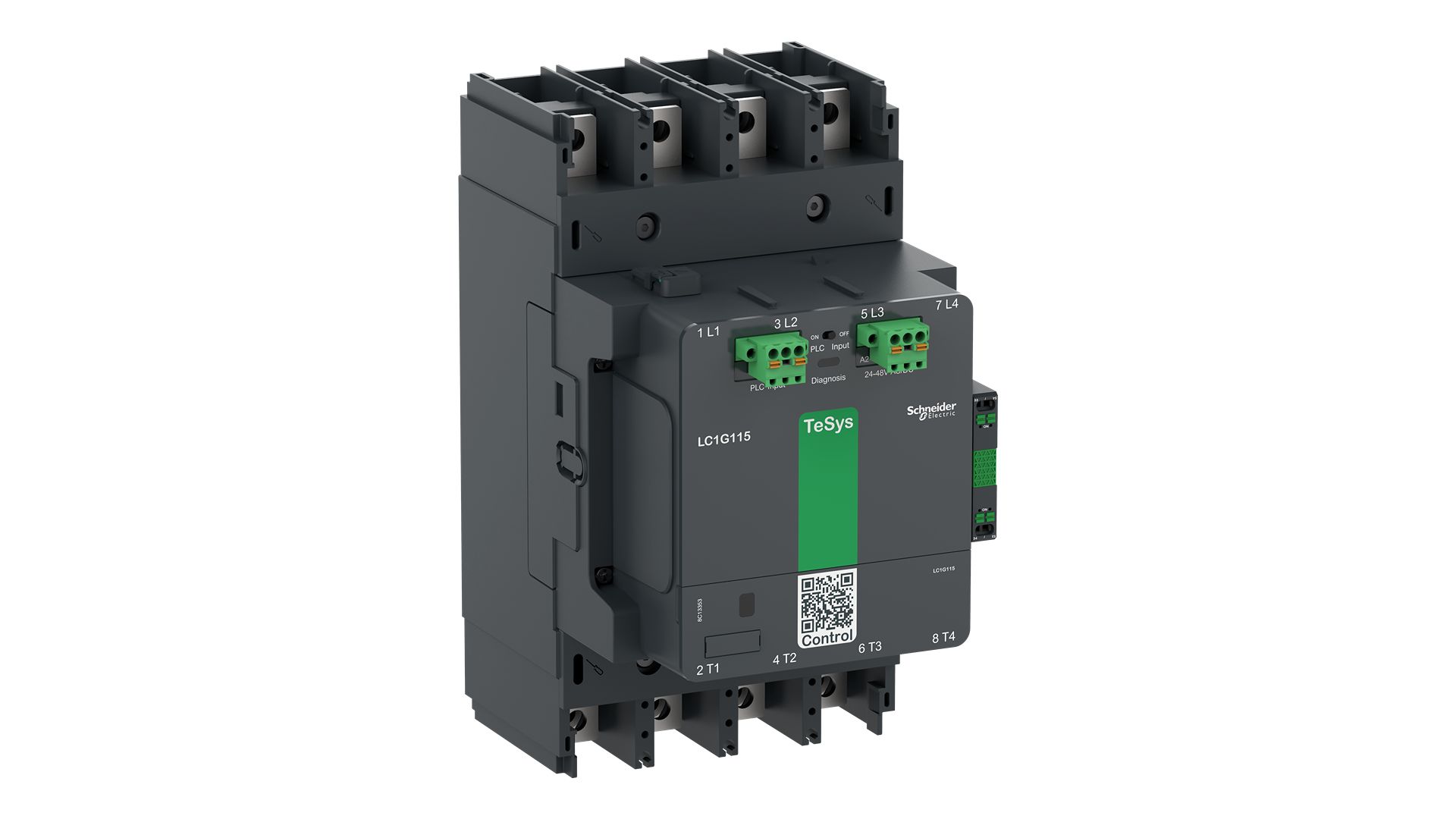

Schneider Electric LC1G1854BEEA

Schneider Electric

Product Information

Contactor Application:
Power Switching
Coil Voltage:
24/48 V ac/dc
Pole and Throw Configuration:
4
Width:
143 mm
Contact Current:
305A
Control Circuit Voltage Uc:
48 V
Operational Current Ie:
185A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Minimum Operating Temperature:
-25°C
Length:
255mm
Standards/Approvals:
CSA C22.2 No 14, CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, EN/ISO 13849-1, IEC 60068-2-30, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, IEC 60529, IEC 60695-2-1, IEC 60947, IEC 60947-1 Annex Q, IEC 60947-4-1, IEC 60947-5-1, UL 60335-2-40:Annex JJ, UL 60947-4-1, UL 94
Number of Auxiliary Contacts:
2
Contact Voltage:
1000V
Series:
LC1G
Depth:
193mm
Normal State Configuration:
4 NO
Auxiliary Contact Configuration:
1 NO/1 NC
Power Rating:
220W
Number of Poles:
4
Coil Voltage:
24 ~ 48VAC/DC
Termination Style:
Box Lug
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:
LC1G1854BEEA
Coil Power:
-
Must Operate Voltage:
-
Manufacturer:
Schneider Electric
Contact Form:
4PST-NO (4 Form A)
Operate Time:
70 ms
Must Release Voltage:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
305 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount
Series:
TeSys Giga
Switching Voltage:
1000VAC, 460VDC - Max
Release Time:
50 ms
Packaging:
Box
Contact Material:
-
RoHs Compliant
Checking for live stock

This is manufactured by Schneider Electric. The manufacturer part number is LC1G1854BEEA. The coil voltage of the product is 24/48 v ac/dc. It has 4 pole and throw configuration. Furthermore, the product is 143 mm wide. contactor is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 60°c. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 255mm. Moreover, it has about 1000v contact voltage . The product lc1g, is a highly preferred choice for users. The product comes in 193mm depth. The normal state configuration includes 4 no. In addition, it has a standard 1 no/1 nc auxiliary contact configuration . Feature 220w of power rating. It has equipped with 4 poles. The coil voltage of the product is 24 ~ 48vac/dc. Moreover, it has box lug terminal style. The product has -40°c ~ 70°c operating temperature range. The schneider electric's product offers user-desired applications. It also has a 4pst-no (4 form a) contact form. The operating time of the product is 70 ms. It has a long 5 weeks standard lead time. It has a contact current rating of 305 a. The splendid features of the product include auxiliary contacts. The product is available in chassis mount configuration. The product tesys giga, is a highly preferred choice for users. The product's switching voltage is 1000vac, 460vdc - max. While 50 ms is its release time. In addition, box is the available packaging type of the product.
