Pole and Throw Configuration:
3
Width:
45 mm
Supply Voltage:
600/690 V ac/dc
Reset Method:
Automatic & Manual
Adjustable Current Range:
16 to 20 A
FLC Motor Rating:
16 to 20 A

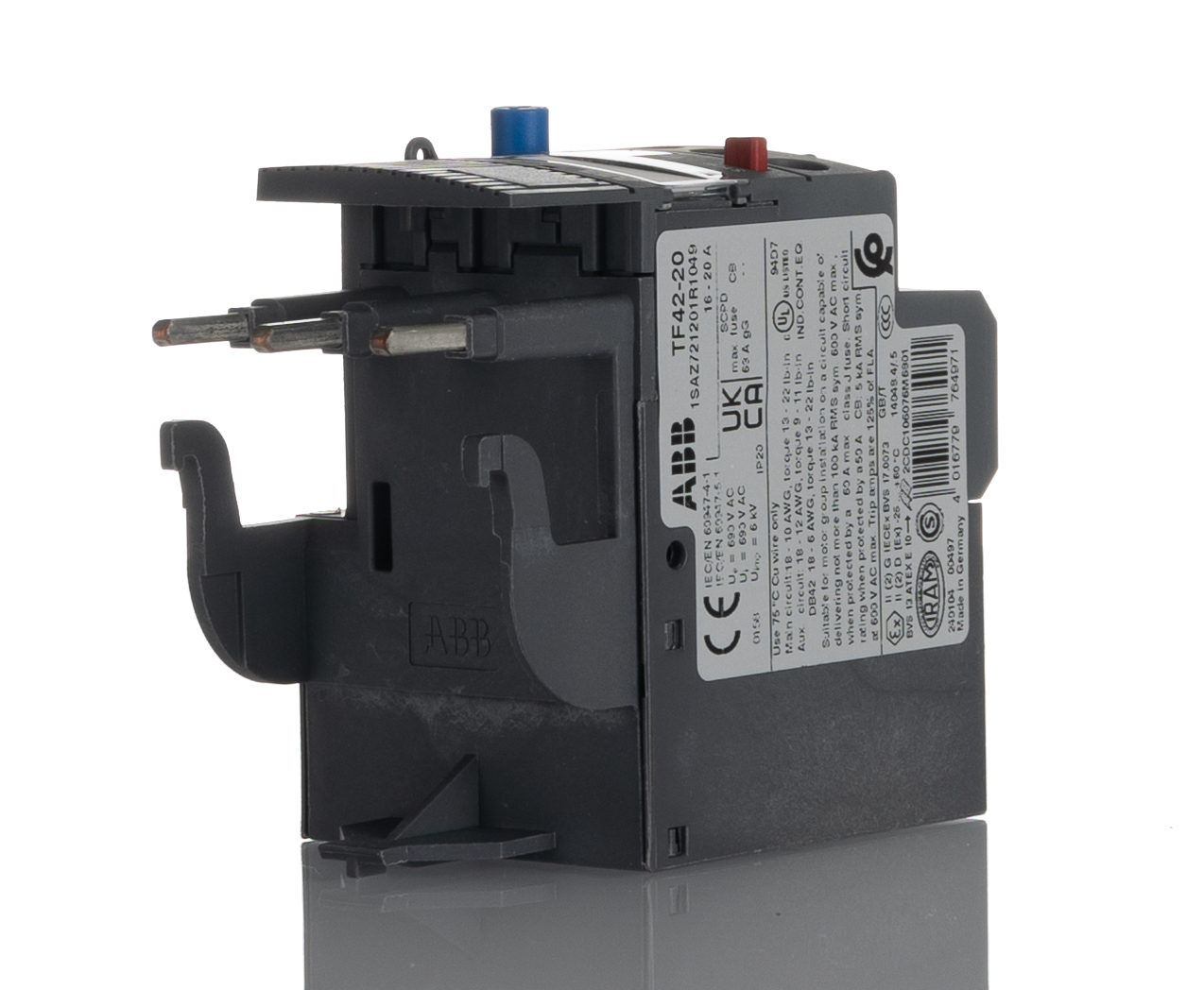

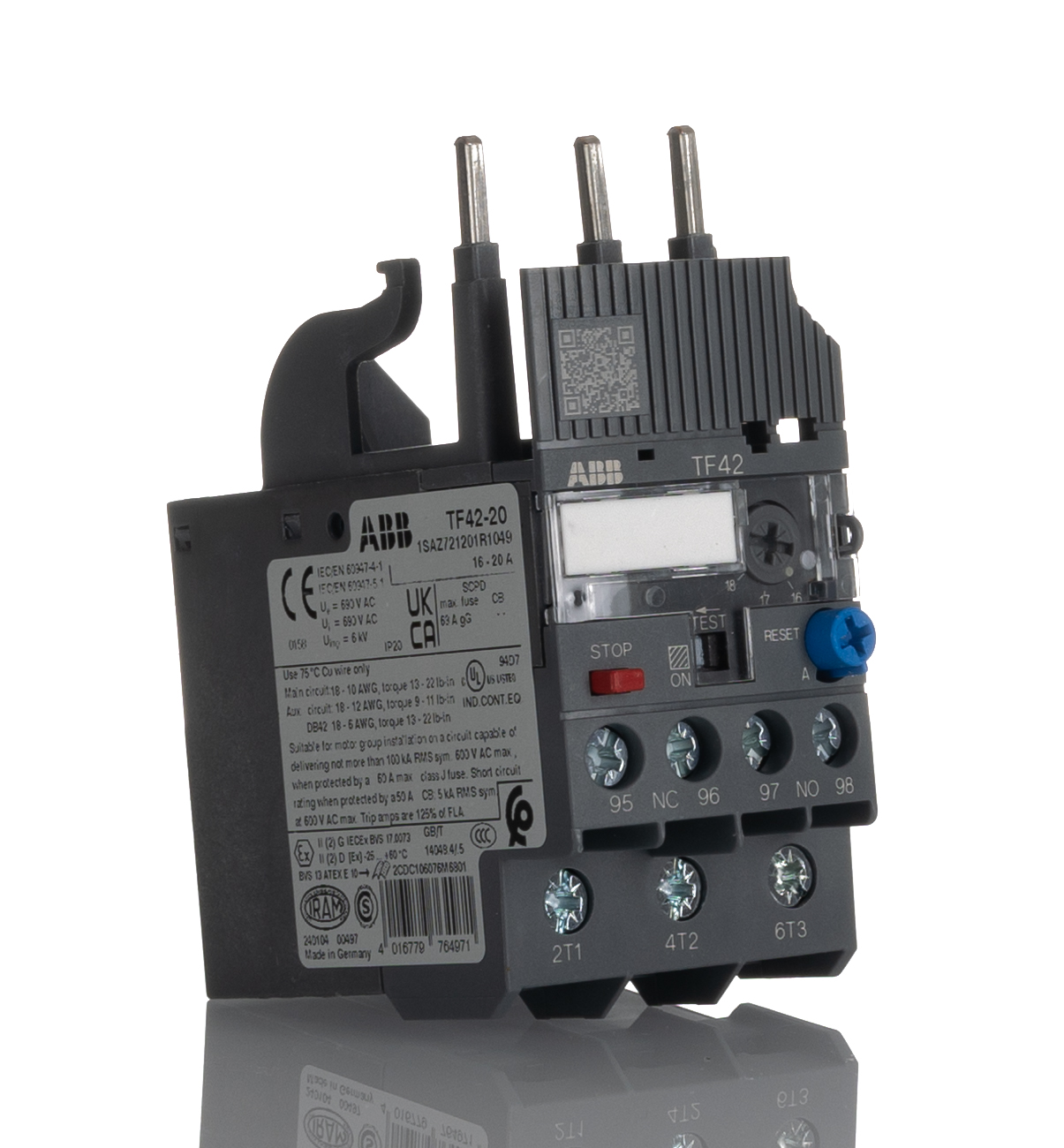

Product Type:
Thermal Overload Relay
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Depth:
70.5mm
Normal State Configuration:
1 NO/1 NC
IP Rating:
IP20
Length:
88.3mm
Standards/Approvals:
UL 508, Lloyd's Register, IEC/EN 60947-1, ABS, IEC/EN 60947-5-1, EMC Directive 2004/108/EC, GOST-R, CCC, Low Voltage Directive 2006/95/EC, DNV, CSA 22.2 No. 14, RINA, IEC/EN 60947-4-1, RoHS Directive 2002/95/EC, CB scheme, CE, cULus
Number of Auxiliary Contacts:
2
Mount Type:
Direct
Series:
TF42
Relay Contact Current:
20 A
Minimum Operating Temperature:
-25°C
Contact Voltage:
690V ac/dc
Power Rating:
2.6W
