Manufacturer : Eaton
Manufacturer Part No : 283108 | DILM12-XRL
Enrgtech Part No : ET20147535
Product Range : PolySwitch RXEF Series

Eaton Contactor Reversing Block for use with DILM12 Series, DILM7 Series, DILM9 Series

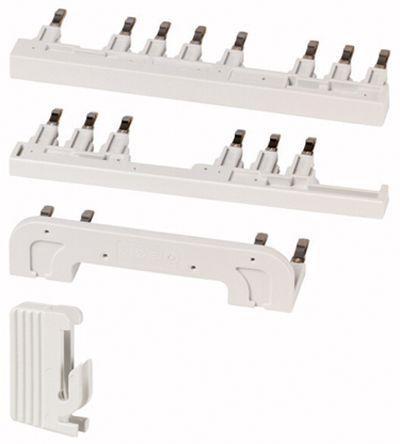

DILM Wiring Links Rigid pre-formed wiring links used to configure various Xstart components for different motor starting applications. Using these kits provides a quick and cost effective wiring method.,3 wiring options available; Starpoint used when assembling star delta starters and used on the star contactor Star-Delta used for the main current inter wiring for a star delta combination Reversing used for the main current inter wiring for a reversing combination Note Kit contents varies according to application selected, shown are typical kit contents.

Product Information

For Use With : DILM12 Series, DILM7 Series, DILM9 Series
Series : DILM
Accessory Type : Reversing Block

Technical Documents


Availability:
3
in stock
Check now

Rate:
  • 1-9
    +
    £ 10.051
  • 10-14
    +
    £ 9.537
  • 15
    +
    £ 9.228

Qty:
