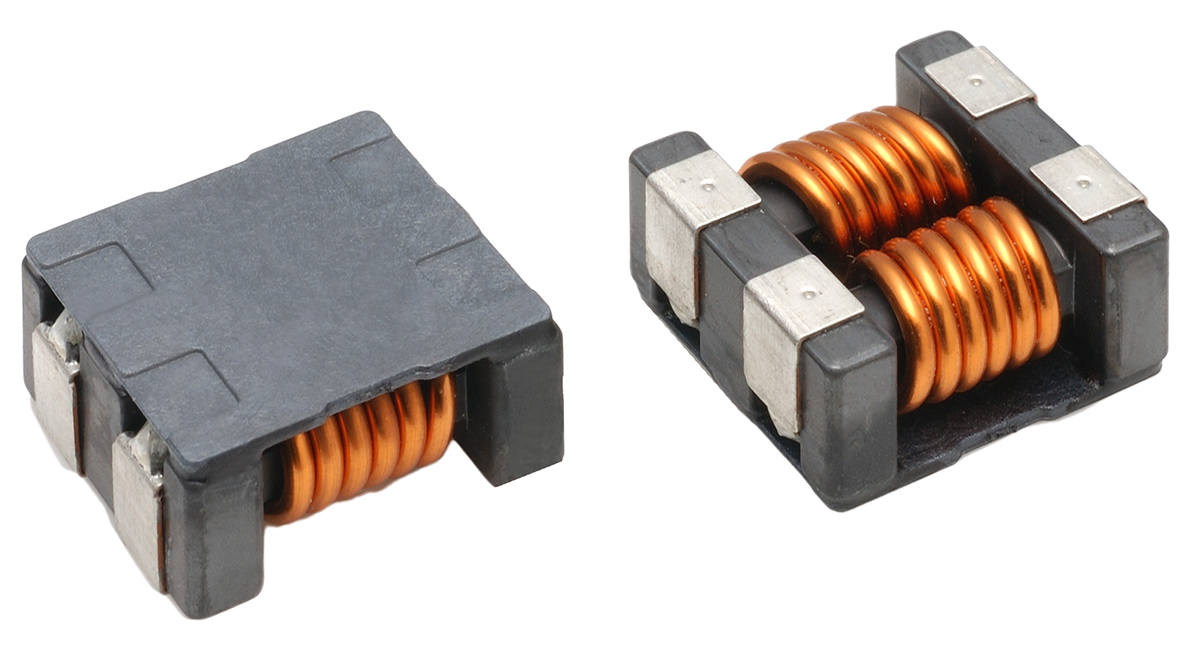

TDK ACM1211-701-2PL-TL01, 1.33 μH ACM Common Mode Choke 6 mΩ

Enrgtech Part No: ET13858743
|
Manufacturer Part No:
ACM1211-701-2PL-TL01
|
Manufacturer: TDK

ACM1211-701-2PL-TL01 TDK , 1.33 μH ACM Common Mode Choke 6 mΩ

Product Information

Maximum Current:

8 A

Dimensions:

12 x 11 x 6mm

Mounting Type:

Surface Mount

Voltage Rating:

80V

Minimum Operating Temperature:

-40°C

Series:

ACM

Operating Temperature Range:

-40°C → +85°C

Termination Style:

Surface Mount

Length:

12mm

Height:

6mm

Test Frequency:

100 MHz

Depth:

11mm

Checking for live stock

The TDK ACM1211-701-2PL-TL01 is a high-performance ACM common mode choke with a 1.33 μH inductance and six mΩ DC resistance, designed for EMI suppression in power lines and signal circuits. This compact, efficient component is ideal for reducing common mode noise in various electronic applications, making it a popular choice among UK engineers and designers. With its high reliability and stable performance, it enhances circuit integrity and supports compliance with electromagnetic interference regulations. It helps suppress unwanted electromagnetic noise, protect sensitive components, and ensure your devices meet EMC standards.

Unparallel Benefits of Buying the TDK ACM1211-701-2PL-TL01, 1.33 μH ACM Common Mode Choke

Compact surface-mount design.
High current handling capability.
Excellent frequency characteristics.
Efficient EMI suppression.
Enhances signal integrity.
Reduces power line noise.
Supports compact PCB layouts.

Broad Range Applications

Power supplies
Automotive electronics
Industrial control systems
Communication equipment
Consumer electronics

ACM1211 Datasheet_EN(Technical Reference)
