Manufacturer : Telegartner
Manufacturer Part No : J01003A0031
Enrgtech Part No : ET16783750
Product Range : PolySwitch RXEF Series

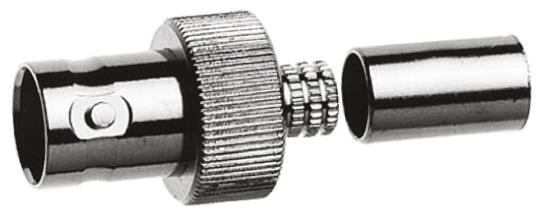

Telegartner Straight 75Ω Cable Mount BNC Connector, jack, Nickel, Clamp, Crimp Termination

Telegartner Straight Jack Crimp RF BNC Coaxial Connector, 75 Ohm BNC straight jack crimp RF BNC coaxial connectors with a 75Ω impedance which can be used up to 4 GHz. These BNC straight jack RF coaxial connectors have crimp terminations, a nickel plated brass finish, a bayonet coupling mechanism and an IP54 rated sealing when mated with jacks. These BNC bulkhead jack crimp RF coaxial connectors are for use with 0.4/2.5 cable Standards IEC 61 169-8 Telegärtner BNC RF Connectors Working voltage 500V max Centre contact Gold plated brass Proof voltage 1.5kV Mating cycles 1000 Insulation resistance 5GΩ Climatic characteristics 40/155/21 Frequency range dc to 4GHz Contact resistance 20mΩ Outer conductor resistance 5mΩ

Product Information

Polarity : Normal
Body Plating : Nickel
Mounting Type : Cable Mount
Gender : Female
Body Orientation : Straight
Coaxial Connector Type : BNC Connector
Bulkhead : No
Contact Plating : Copper Nickel Gold Alloy, Nickel over Copper
Termination Method : Clamp, Crimp
Operating Frequency : 4GHz
Impedance : 75Ω
Contact Material : Beryllium Copper, Copper Nickel Lead Alloy, Copper Zinc Lead Alloy
rohs : RoHS Certificate of Compliance
Size : Standard
