Shield Termination:
Clamp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper; Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
BNC
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.2dB
standardLeadTime:
14 Weeks
Voltage Rating:
500 V
REACH Status:
REACH Affected
Includes:
5 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket
edacadModel:
031-204 Models
Frequency - Max:
4 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/2643291
Impedance:
50 Ohms
Cable Group:
RG-55, 55A, 55B, 58, 58A, 58B, 58C, 141, 141A, 142, 142A, 142B, 223, 400
Package:
Bulk
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
Weatherproof
Features:
-
Mounting Type:
Free Hanging (In-Line), Right Angle
Series:
-
Center Contact Plating:
Silver
Contact Termination:
Solder
Base Product Number:
031-20
ECCN:
EAR99

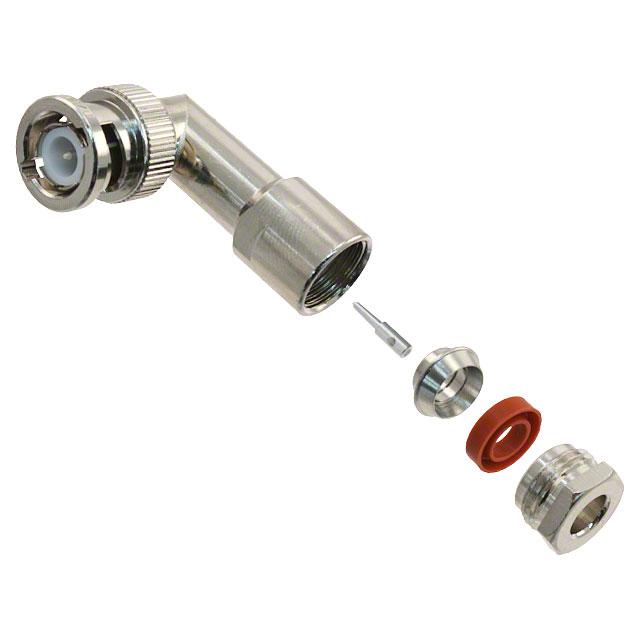

This is manufactured by Amphenol RF. The manufacturer part number is 031-204. It has a clamp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The beryllium copper; brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in bnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.2db of insertion loss. It has a long 14 weeks standard lead time. Moreover, the product has a nominal 500 v voltage rating. In addition, it is reach affected. The product is also supplied with 5 pcs - 1 connector, 1 braid clamp, 1 clamp, 1 contact, 1 gasket. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-55, 55a, 55b, 58, 58a, 58b, 58c, 141, 141a, 142, 142a, 142b, 223, 400. It is shipped in bulk package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. It is IP rated with weatherproof. The product is available in free hanging (in-line), right angle configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 031-20, a base product number of the product. The product is designated with the ear99 code number.
