Amphenol RF 132123

Enrgtech Part No: ET18874046
|
Manufacturer Part No:
132123
|
Manufacturer: Amphenol RF

Product Information

Gender:

Plug

Body Orientation:

Right Angle

Coaxial Connector Type:

SMA Connector

Mounting Type:

Cable Mount

Termination Method:

Crimp

HTSUS:

8536.69.4010

RoHS Status:

ROHS3 Compliant

Mounting Feature:

Center Contact Material:

Brass

Operating Temperature:

-65°C ~ 165°C

Connector Style:

SMA

Body Finish:

Gold

Checking for live stock

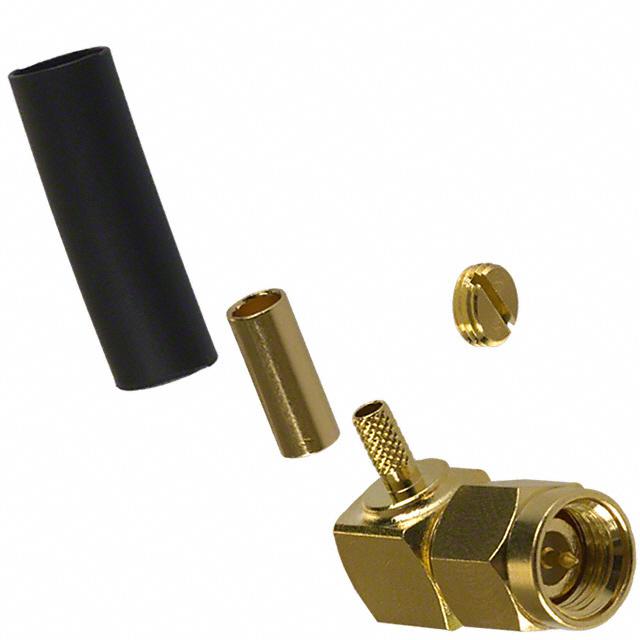

The Amphenol RF 132123 is a premium SMA coaxial connector plug, engineered with a right-angle body orientation for applications where space is limited and cable bending must be avoided. Constructed from durable brass with a gold finish, this connector assembly provides a highly reliable 50 Ohm impedance interface, crucial for maintaining signal integrity up to 3 GHz maximum frequency. Designed for cable-mount applications, it is compatible with common cable groups such as RG-174/316 and utilises a reliable crimp termination method for secure, consistent RF performance in demanding environments.

Benefits of Using the Amphenol RF 132123 SMA Coaxial Connector Assembly

The right-angle design of the connector assembly facilitates connections in tight spaces while ensuring signal quality and reducing cable stress. The gold-plated brass construction offers excellent corrosion resistance and low insertion loss (0.3 dB), guaranteeing a long-lasting and dependable connection for critical RF links.

Standout Features & Application Areas of the Amphenol RF SMA Coaxial Connector Assembly

Standout Features:
- Right-angle body orientation, ideal for high-density layouts.
- SMA Coaxial Connector Type with 50 Ohms characteristic impedance.
- High-performance up to 3 GHz maximum frequency.
- Durable Brass body with Gold finish and weatherproof ingress protection.
Application Areas:
- Telecommunications and GPS equipment.
- RF instrumentation and test gear.
- Wireless systems and antennae connections where space is a constraint.

Datasheet - 132123(Technical Reference)

132123 Drawing(Datasheets)
