Amphenol RF 172165-11
Product Information
Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper; Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
N Type
Body Finish:
White Bronze
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.15dB
standardLeadTime:
14 Weeks
Voltage Rating:
1500 V
REACH Status:
REACH Affected
Includes:

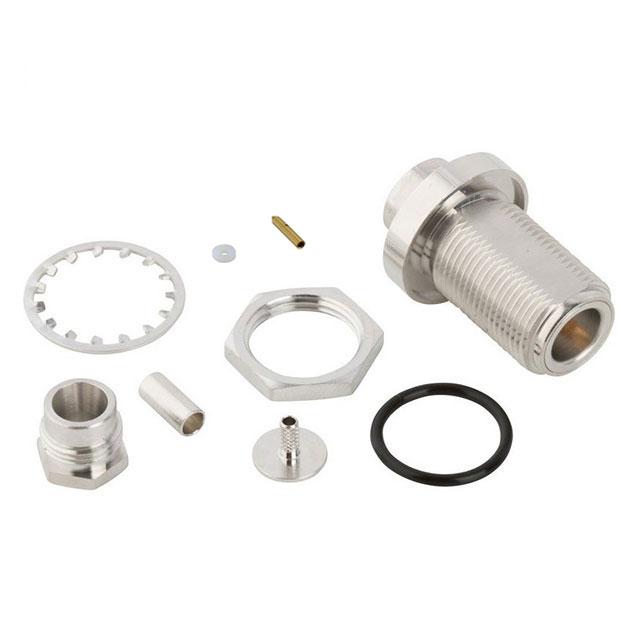

9 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Rear Body
Frequency - Max:
2.5 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-179, 188, 316 Double Braid, M17/152-RD316
Package:
Bulk
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
IP68 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Crimp or Solder
Base Product Number:
172165
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 172165-11 on website for other similar products.
We accept all major payment methods for all products including ET18814583. Please check your shopping cart at the time of order.
You can order Amphenol RF brand products with 172165-11 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol RF 172165-11. You can also check on our website or by contacting our customer support team for further order details on Amphenol RF 172165-11.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18814583 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol RF" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18814583.
Yes. We ship 172165-11 Internationally to many countries around the world.
This is manufactured by Amphenol RF. The manufacturer part number is 172165-11. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The beryllium copper; brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in n type connector style. The body is galvanized with nice finishing of white bronze. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.15db of insertion loss. It has a long 14 weeks standard lead time. Moreover, the product has a nominal 1500 v voltage rating. In addition, it is reach affected. The product is also supplied with 9 pcs - 1 connector, 1 clamp, 1 contact, 1 ferrule, 1 gasket, 1 insulator, 1 lockwasher, 1 nut, 1 rear body. It maximum frequency is 2.5 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-179, 188, 316 double braid, m17/152-rd316. It is shipped in bulk package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. It is IP rated with ip68 - dust tight, waterproof. The product is available in panel mount configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates crimp or solder contact terminals. Moreover, it corresponds to 172165, a base product number of the product. The product is designated with the ear99 code number.
