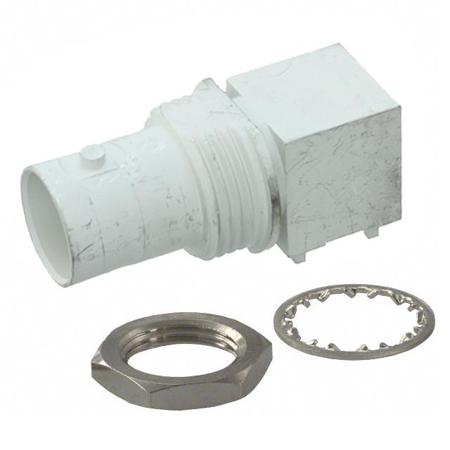

Amphenol RF 031-70535-12G

031-70535-12G Amphenol RF
031-70535-12G
Amphenol RF

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
BNC
Body Finish:
Tin
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
14 Weeks
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:

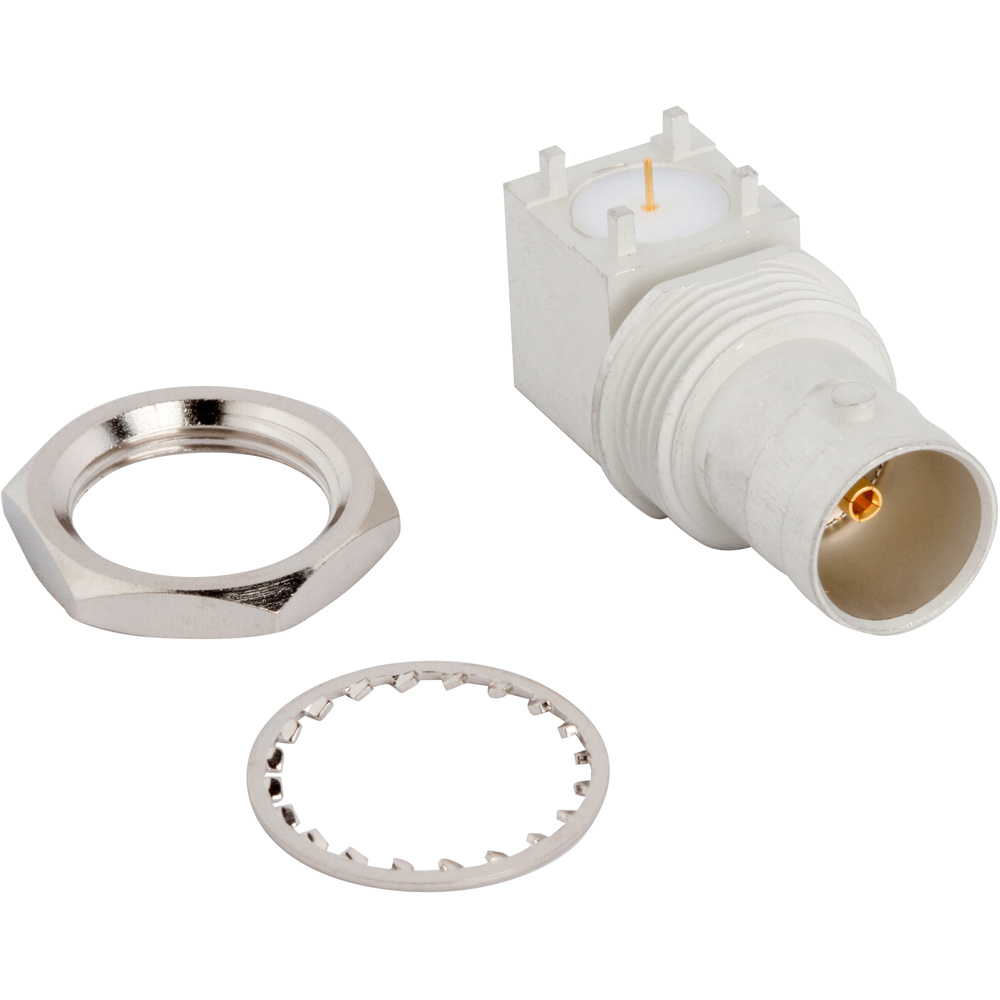

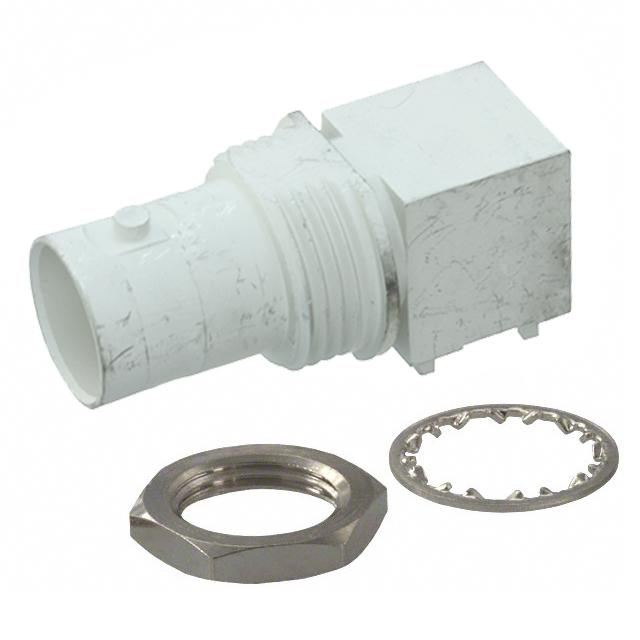

3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
edacadModel:
031-70535-12G Models
Frequency - Max:
12 GHz
Housing Color:
Silver, Matte
edacadModelUrl:
/en/models/7361059
Impedance:
75 Ohms
Cable Group:
-
Package:
Tray
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
031-70
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 031-70535-12G. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in bnc connector style. The body is galvanized with nice finishing of tin. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 14 weeks standard lead time. It has a solder shield termination. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 lockwasher, 1 nut. It maximum frequency is 12 ghz. It has an integral silver, matte housing colour. It has an impedance value of 75 ohms. It is shipped in tray package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in panel mount, through hole, right angle configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 031-70, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
31-70535-12G(Product Drawings)
