Amphenol RF 172243
Product Information
Mounting Type:
Bulkhead
Gender:
Female
Body Orientation:
Straight
Coaxial Connector Type:
N Connector
Termination Method:
Solder
Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
N Type
Body Finish:
White Bronze
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.15dB
standardLeadTime:
8 Weeks
Voltage Rating:
1500 V
REACH Status:
REACH Affected
Includes:

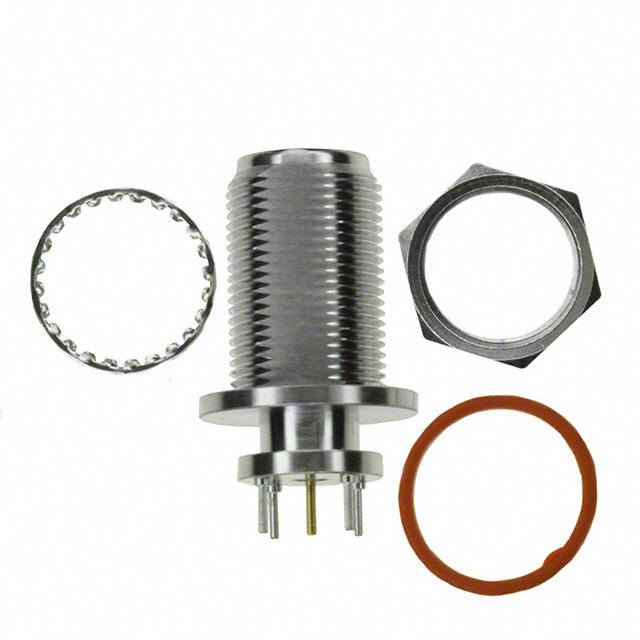

4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
edacadModel:
172243 Models
Frequency - Max:
11 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/1989891
Impedance:
50 Ohms
Cable Group:
-
Package:
Bag
Connector Type:
Receptacle, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
Weatherproof
Features:
-
Mounting Type:
Panel Mount, Through Hole
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
1722
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 172243 on website for other similar products.
We accept all major payment methods for all products including ET18629163. Please check your shopping cart at the time of order.
You can order Amphenol RF brand products with 172243 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Assemblies category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol RF 172243. You can also check on our website or by contacting our customer support team for further order details on Amphenol RF 172243.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18629163 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol RF" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18629163.
Yes. We ship 172243 Internationally to many countries around the world.
This is manufactured by Amphenol RF. The manufacturer part number is 172243. The product is available in bulkhead configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. This coaxial connector is a type of n connector. It allows solder termination method. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in n type connector style. The body is galvanized with nice finishing of white bronze. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.15db of insertion loss. It has a long 8 weeks standard lead time. Moreover, the product has a nominal 1500 v voltage rating. In addition, it is reach affected. The product is also supplied with 4 pcs - 1 connector, 1 gasket, 1 lockwasher, 1 nut. It maximum frequency is 11 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. It is shipped in bag package . receptacle, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. It is IP rated with weatherproof. The product is available in panel mount, through hole configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 1722, a base product number of the product. The product is designated with the ear99 code number.
