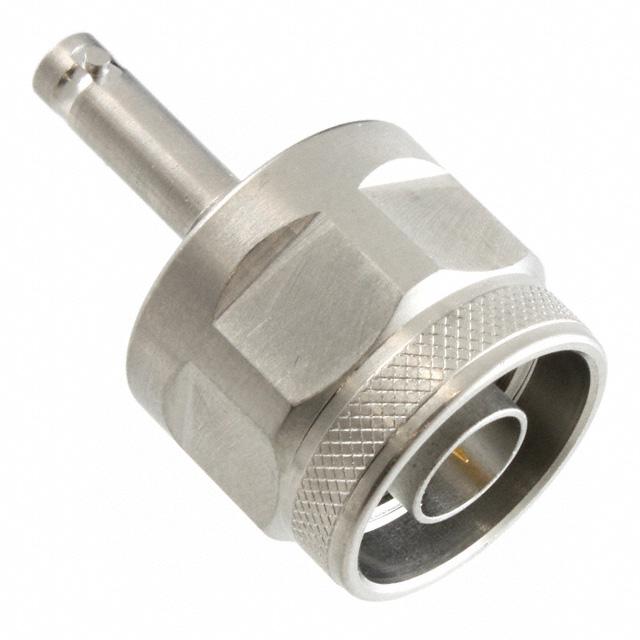

Amphenol RF APH-NP-HDBNCJ
Product Information
Body Orientation:
Straight
Gender B:
Female
Gender A:
Male
Operating Frequency:
4GHz
Length:
35.25mm
Adapter Type:
N Plug to BNC Socket
Contact Plating:
Gold
Adapter Type A:
N
Impedance:
75Ω
Adapter Type B:
HD BNC
Contact Material:
Beryllium Copper
Style:
Straight
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Convert From (Adapter End):
N Plug, Male Pin
Center Gender:
Female to Male
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Body Finish:
-
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Adapter Series:
BNC, HD to N
standardLeadTime:
14 Weeks
Convert To (Adapter End):
BNC HD Jack, Female Socket
REACH Status:
REACH Affected
Includes:
-
Frequency - Max:
4 GHz
Impedance:
75 Ohms
Mounting Feature:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Stainless Steel
Fastening Type:
Bayonet Lock, Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Conversion Type:
Between Series
Adapter Type:
Plug to Jack
Base Product Number:
APH-NP
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search APH-NP-HDBNCJ on website for other similar products.
We accept all major payment methods for all products including ET18746836. Please check your shopping cart at the time of order.
You can order Amphenol RF brand products with APH-NP-HDBNCJ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Adapters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol RF APH-NP-HDBNCJ. You can also check on our website or by contacting our customer support team for further order details on Amphenol RF APH-NP-HDBNCJ.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18746836 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol RF" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18746836.
Yes. We ship APH-NP-HDBNCJ Internationally to many countries around the world.
This is manufactured by Amphenol RF. The manufacturer part number is APH-NP-HDBNCJ. It has straight body orientation. Its gender B is female . It has a male gender A . Furthermore, the product has 4ghz operating frequency range. Its accurate length is 35.25mm. The adapter is a n plug to bnc socket. The high-quality gold is used as contact plating material. Its adapter type A is of n . It has an impedance value of 75ω. It has a standard hd bnc type adapter A . The product is made from sturdy beryllium copper materials. Additionally, the product is designed with straight Style. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. It has conversion specifications from n plug, male pin. Its center comes as a female to male. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The adapter has a bnc, hd to n series. It has a long 14 weeks standard lead time. Can effectively be converted to bnc hd jack, female socket. In addition, it is reach affected. It maximum frequency is 4 ghz. It has an impedance value of 75 ohms. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product's body is nicely designed from stainless steel materials. Furthermore, bayonet lock, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. Features between series conversion type. The adapter is a plug to jack. Moreover, it corresponds to aph-np, a base product number of the product. The product is designated with the ear99 code number.
