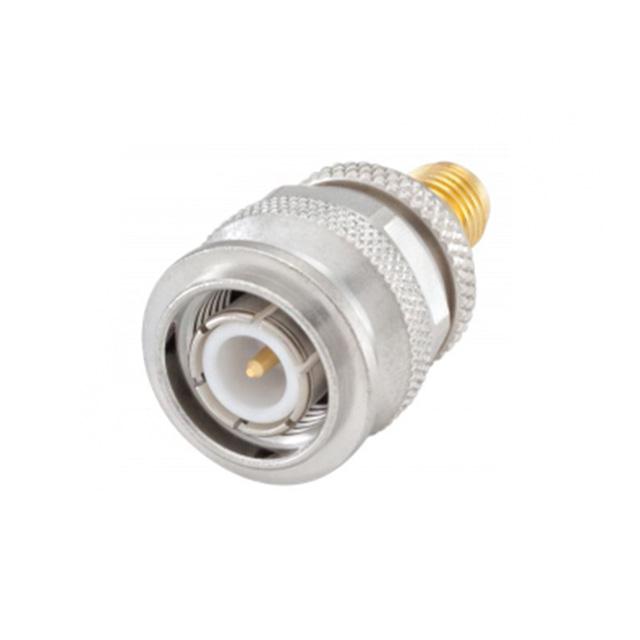

Rosenberger 56S132-K00L5
Product Information
Polarity:
Normal
Body Orientation:
Straight
Gender B:
Female
Gender A:
Male
Operating Frequency:
10GHz
Length:
26.8mm
Adapter Type:
SMA Socket to TNC Plug
Contact Plating:
Gold, Nickel
Adapter Type A:
TNC
Impedance:
50Ω
Adapter Type B:
SMA
Contact Material:
Beryllium Copper, Brass
Style:
Straight
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Convert From (Adapter End):
TNC Plug, Male Pin
Center Gender:
Female to Male
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Body Finish:
Gold, Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.05dB
Adapter Series:
SMA to TNC
standardLeadTime:
13 Weeks
Convert To (Adapter End):
SMA Jack, Female Socket
REACH Status:
REACH Affected
Includes:
-
Frequency - Max:
10 GHz
Impedance:
50 Ohms
Mounting Feature:
-
Package:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Beryllium Copper, Brass
Fastening Type:
Threaded, Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Conversion Type:
Between Series
Adapter Type:
Plug to Jack
Base Product Number:
56S132
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 56S132-K00L5 on website for other similar products.
We accept all major payment methods for all products including ET15991239. Please check your shopping cart at the time of order.
You can order Rosenberger brand products with 56S132-K00L5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Connector (RF) Adapters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Rosenberger 56S132-K00L5. You can also check on our website or by contacting our customer support team for further order details on Rosenberger 56S132-K00L5.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET15991239 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Rosenberger" products on our website by using Enrgtech's Unique Manufacturing Part Number ET15991239.
Yes. We ship 56S132-K00L5 Internationally to many countries around the world.
This is manufactured by Rosenberger. The manufacturer part number is 56S132-K00L5. While providing normal polarity. It has straight body orientation. Its gender B is female . It has a male gender A . Furthermore, the product has 10ghz operating frequency range. Its accurate length is 26.8mm. The adapter is a sma socket to tnc plug. The high-quality gold, nickel is used as contact plating material. Its adapter type A is of tnc . It has an impedance value of 50ω. It has a standard sma type adapter A . The product is made from sturdy beryllium copper, brass materials. Additionally, the product is designed with straight Style. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. It has conversion specifications from tnc plug, male pin. Its center comes as a female to male. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. The body is galvanized with nice finishing of gold, nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.05db of insertion loss. The adapter has a sma to tnc series. It has a long 13 weeks standard lead time. Can effectively be converted to sma jack, female socket. In addition, it is reach affected. It maximum frequency is 10 ghz. It has an impedance value of 50 ohms. Its typical moisture sensitivity level is 1 (unlimited). The product's body is nicely designed from beryllium copper, brass materials. Furthermore, threaded, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. Features between series conversion type. The adapter is a plug to jack. Moreover, it corresponds to 56s132, a base product number of the product. The product is designated with the ear99 code number.
