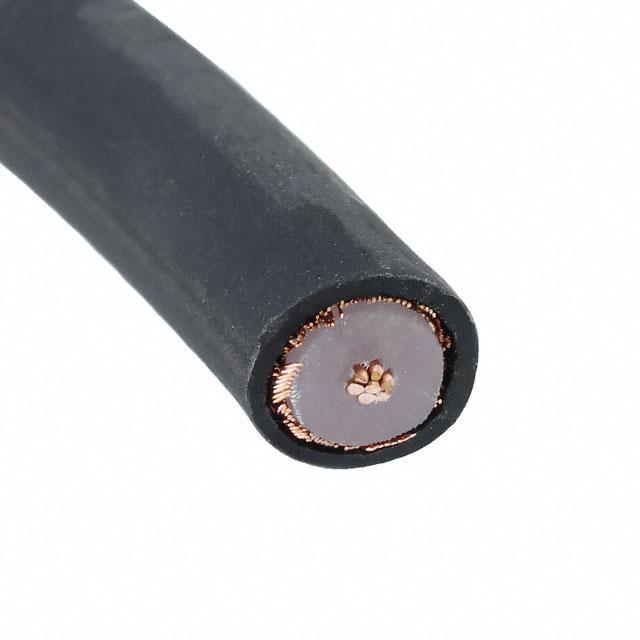

Alpha Wire 9213 BK005
Product Information
Attenuation:
0.27 dB/100ft @ 1MHz, 0.55 dB/100ft @ 10MHz
Number of Strands:
7
Sheath Material:
Polyvinyl Chloride PVC
Operating Temperature Range:
-40 → +80 °C
Conductor Material:
Bare Copper
Series:
MEC COAXIAL
Size of Strands:
0.762 mm
Core Strands:
7/0.03
Sheath Colour:
Black
Capacitance:
101.024pF/m
Length:
30m
Terminated/Unterminated:
Unterminated
Velocity ratio:
66%
Minimum Operating Temperature:
-40°C
Coaxial Type:
RG213/U
Insulation Material:
PE
Conductor Strand Type:
Stranded
Characteristic Impedance:
50 Ω
Outer Diameter:
10.29mm
Maximum Operating Temperature:
+80°C
HTSUS:
8544.20.0000
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Dielectric Diameter:
0.285" (7.24mm)
Conductor Strand:
7 Strands / 0.0296"
Operating Temperature:
-15°C ~ 80°C
Usage:
-
Dielectric Material:
Solid Polyethylene (PE)
VoP, Velocity of Propagation:
66
REACH Status:
REACH Unaffected
Impedance:
50 Ohms
Cable Group:
RG-213
Package:
Spool
Wire Gauge:
13 AWG
Shield Type:
Braid
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.48m)
standardLeadTime:
49 Weeks
Shield Coverage:
96%
Features:
-
Jacket (Insulation) Diameter:
0.405" (10.29mm)
Conductor Material:
Copper, Bare; Copper, Tinned
Series:
-
Cable Type:
Coaxial
Shield Material:
Copper, Bare
ECCN:
EAR99
Base Product Number:
9213
Jacket Color:
Black
Checking for live stock
FAQs
Yes. You can also search 9213 BK005 on website for other similar products.
We accept all major payment methods for all products including ET11157053. Please check your shopping cart at the time of order.
You can order Alpha Wire brand products with 9213 BK005 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Coaxial Cables (RF) category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Alpha Wire 9213 BK005. You can also check on our website or by contacting our customer support team for further order details on Alpha Wire 9213 BK005.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11157053 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alpha Wire" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11157053.
Yes. We ship 9213 BK005 Internationally to many countries around the world.
This is manufactured by Alpha Wire. The manufacturer part number is 9213 BK005. Its attenuation is about 0.27 db/100ft @ 1mhz, 0.55 db/100ft @ 10mhz . Additionally, it contains 7 strands. The sheath is constructed from durable and adorable polyvinyl chloride pvc material. The product has -40 → +80 °c of operating temperature range. The conductor is made from bare copper material. The product mec coaxial, is a highly preferred choice for users. The strand size includes 0.762 mm. The core strands are 7/0.03. The sheath has an adorable black colour. It provides a 101.024pf/m of capacitance value. Its accurate length is 30m. Termination Options -unterminated. Its velocity ratio is 66% . Whereas, the minimum operating temperature of the product is -40°c. It has a/an rg213/u type coaxial . It has a robust pe insulation material. It has a stranded type conductor strand . The typical characteristic impedance includes 50 ω. Its outer diameter is 10.29mm. It has a maximum operating temperature of +80°c. It is assigned with possible HTSUS value of 8544.20.0000. The product is rohs3 compliant. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. Its dielectric diameter includes 0.285" (7.24mm). It also features a 7 strands / 0.0296" conductor strand. The product has -15°c ~ 80°c operating temperature range. Moreover, the product is constructed from highly solid polyethylene (pe) dielectric material. Bears 66 propagation's velocity. In addition, it is reach unaffected. It has an impedance value of 50 ohms. Cable Group Options: rg-213. It is shipped in spool package . Moreover, the product has a wire gauge of 13 awg. The item is shielded with a braid. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 100.0' (30.48m). It has a long 49 weeks standard lead time. It covers shielding capability up to 96%. The diameter of the jacket is 0.405" (10.29mm). The conductor is made from copper, bare; copper, tinned material. It is a typical coaxial cable. The product is shielded with a robust copper, bare shield materials. The product is designated with the ear99 code number. Moreover, it corresponds to 9213, a base product number of the product. It comes in nice black colour.
