Dimensions:
56 x 28 x 188mm
Power Source:
Battery
Maximum Conductor Size:
27mm
AC Current Measurement Range:
0 → 400 A
Width:
28mm
Battery Life:
200 h
Best Resistance Measurement Accuracy:
±1.9% ±5 Digits
AC Current Measurement Resolution:
100mA
Best Temperature Measurement Accuracy:
>80 %
AC Voltage Measurement Range:
200 → 600 V
Absolute Maximum AC Voltage Measurement:
600V ac
Model Number:
DCM320
Best AC Voltage Accuracy:
±(1.5% rdg + 5dgts)
Absolute Maximum AC Current Measurement:
400A ac
Battery Type:
1.5 A Alkaline
Absolute Maximum Resistance Measurement:
20MΩ
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
Safety Category Level:
CAT III
Length:
56mm
Absolute Maximum Temperature Measurement:
+50°C
Display Type:
LCD
Jaw Capacity Busbars:
27mm
Weight:
225g
AC Voltage Measurement Resolution:
100mV
Best AC Current Accuracy:
±(2% rdg + 5dgts)
Safety Category Voltage:
600V
Absolute Maximum DC Voltage Measurement:
600V dc
Height:
188mm
Safety Category:
CAT III 600V
Best DC Voltage Accuracy:
±(1% rdg + 2dgts)
DC Voltage Measurement Resolution:
100mV
Clamp Meter Type:
AC Current Clamp Meter
Functions Measured:
AC Current

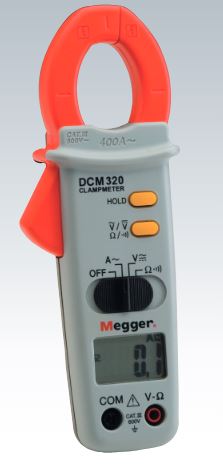

This is 400 A AC Digital Clamp Meter with Volts manufactured by Megger. The manufacturer part number is 1000-304. The given dimensions of the product include 56 x 28 x 188mm. Moreover, the product gets power from battery. Moreover, it has a maximum 27mm size conductor . The AC Current Measurement Range of the product is 0 → 400 a Furthermore, the product is 28mm wide. Its battery life is about 200 h . It exhibits a ±1.9% ±5 digits best resistance measurement accuracy . In addition, it has about 100ma AC current measurement resolution . It has about >80 % best temperature measurement accuracy . It has an AC Voltage Measurement Range of 200 → 600 v Additionally, it has an absolute maximum 600v ac voltage measurement . It has a model number dcm320. Its best AC voltage accuracy is about ±(1.5% rdg + 5dgts) . It has an absolute maximum 400a ac current measurement . This 1.5 a alkaline battery is comparatively much efficient than common batteries. Moreover, it has an absolute maximum 20mω resistance measurement . It has a maximum operating temperature of +50°c. Whereas, the minimum operating temperature of the product is 0°c. Moreover, its safety category level is cat iii . Its accurate length is 56mm. Whereas, the absolute maximum temperature measurement is +50°c . It features a remarkable lcd display. The product has about 27mm jaw busbars capacity . The typical product's weight is 225g. Whereas, its AC voltage measurement resolution is 100mv . It has a ±(2% rdg + 5dgts) best AC current accuracy . Its safety category voltage is 600v . Moreover, it has an absolute maximum 600v dc voltage measurement . In addition, the height is 188mm. It provides robust safety and is complied with cat iii 600v safety category. Moreover, it has a ±(1% rdg + 2dgts) best DC voltage accuracy . Its DC voltage measurement resolution is approximately 100mv . It has a/an ac current clamp meter type clamp meter . Moreover, it has an ac current functions measured .
