Temperature Resolution:
0.1°C
Maximum AC Current Measurement:
600A
Power Source:
Battery
DC Voltage Accuracy:
±1 % rdg + 5 Digits
Width:
83.7 mm
Battery Life:
12h
Distrelec Product Id:
300-47-593
AC Voltage Resolution:
100mV
True RMS:
Yes
Resistance Measurement Accuracy:
1 % rgd ± 5 % Digits
Maximum DC Current Measurement:
200μA
Model Number:
902 FC
Maximum DC Voltage Measurement:
600V
AC Current Accuracy:
±2 % rdg + 5 Digits
AC Voltage Accuracy:
±1 % rdg + 5 Digits
Battery Type:
AA
DC Current Resolution:
0.1μA
DC Current Accuracy:
±1 % rdg + 4 Digits
DC Voltage Resolution:
100 mV
Non-Contact Voltage Detector:
Yes
AC Current Resolution:
10mA
Safety Category Level:
CAT III
Length:
45.4mm
Maximum Resistance Measurement:
6mΩ
Standards/Approvals:
IEC 61010-1IEC 61010-2-032: CAT III 1000 V / CAT IV 600 VIEC 61010-2-033: CAT III 1000 V / CAT IV 600 VIEC 60529: IP30non-operatingFCC ID:T68-FBLEIC:6627A-FBLEIEC 61326-1IEC 61326-2-2CISPR 11: Group 1Class AKCC: Class A EquipmentFCC: 47 CFR 15 subpart B
Resistance Resolution:
1Ω
Display Type:
LCD

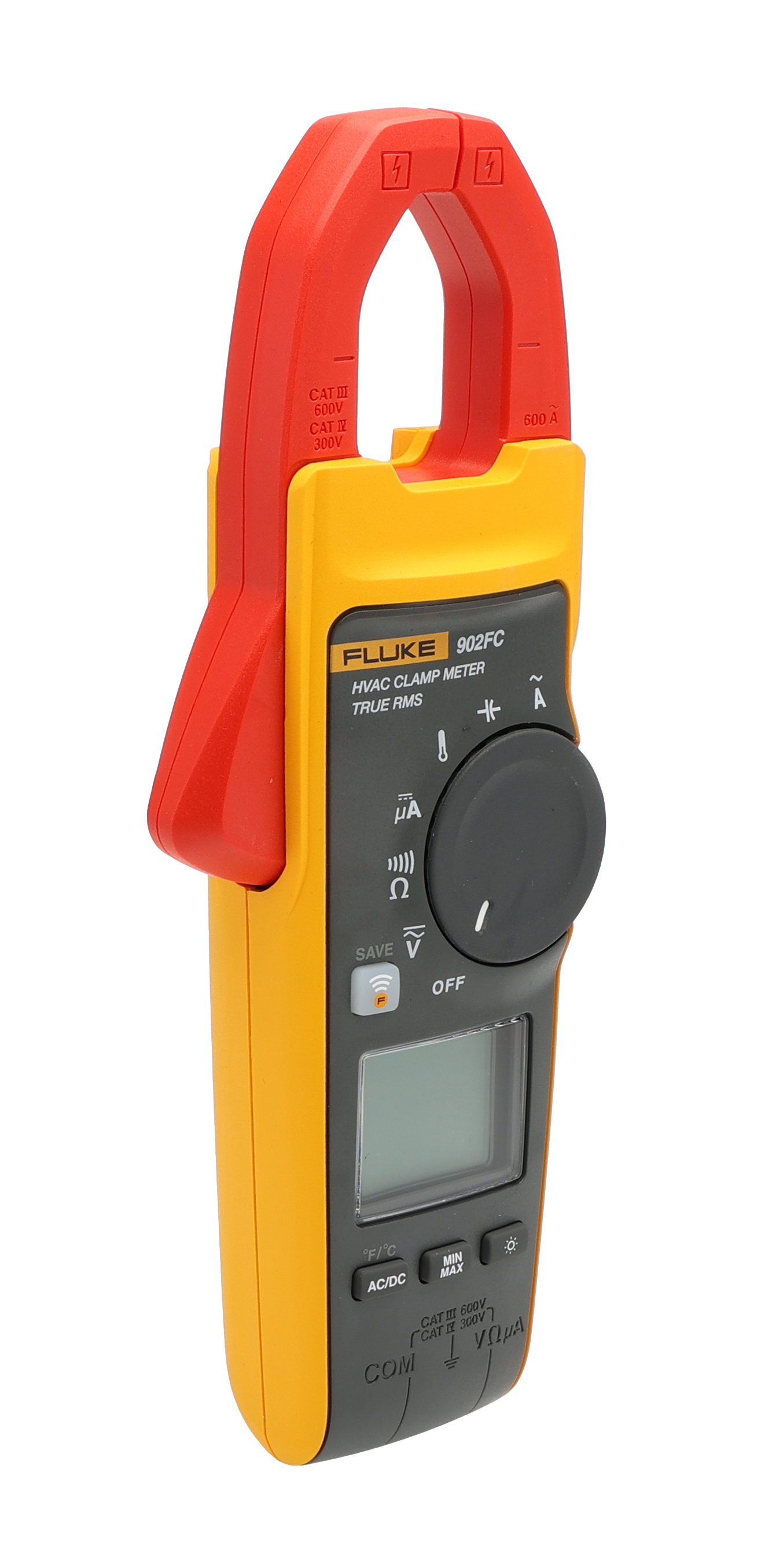

Product Type:
Clamp Meter
Weight:
419g
Maximum Operating Temperature:
50°C
Safety Category Voltage:
600V
Maximum AC Voltage Measurement:
600V
Height:
230mm
Maximum Temperature Measurement:
400°C
Minimum Operating Temperature:
-10°C
Temperature Measurement Accuracy:
1 % rgd ± 8 Digits %
Clamp Meter Type:
HVAC Clamp Meter
Functions Measured:
AC Current, DC Current, Capacitance, AC Voltage, Temperature, Resistance, Continuity, DC Voltage
