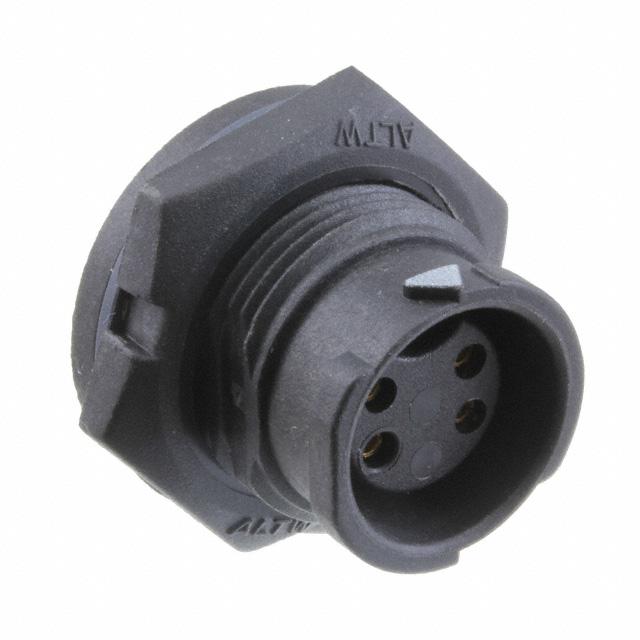

Amphenol LTW BD-04PMFS-QC8001

BD-04PMFS-QC8001 Amphenol LTW
Amphenol LTW

Product Information

HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Operating Temperature:
-40°C ~ 105°C
Shell Size, MIL:
-
Number of Positions:
4 (Data)
Contact Finish - Mating:
Gold
Backshell Material, Plating:
-
Shielding:
Unshielded
Cable Opening:
-
title:
BD-04PMFS-QC8001
Shell Material:
Polyamide (PA), Nylon, Glass Filled
REACH Status:
REACH Unaffected
Current Rating (Amps):
5A
Applications:
-
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
Voltage Rating:
300VAC
Shell Size - Insert:
B
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Solder Cup
standardLeadTime:
14 Weeks
Insert Material:
Polyamide (PA), Nylon, Glass Filled
Orientation:
Keyed
Ingress Protection:
IP68 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Shell Finish:
-
Color:
Black
Series:
X-Lok
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Alloy
Base Product Number:
BD-04PMFS
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol LTW. The manufacturer part number is BD-04PMFS-QC8001. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 4 (data). It has nice contact finishing of gold. Furthermore, the product is shielded with unshielded. It is made from highly reliable polyamide (pa), nylon, glass filled materials. In addition, it is reach unaffected. Additionally, the product's output is 5a. The basic product material is plastic. It carries ul94 v-0 of material flammability rating. Moreover, the product has a nominal 300vac voltage rating. The insert's size is b. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder cup termination style. It has a long 14 weeks standard lead time. While it is also supplied with highly stable polyamide (pa), nylon, glass filled insert material. The product has a keyed orientation. It is IP rated with ip68 - dust tight, waterproof. The product is available in panel mount configuration. It has a classic black colour. The product x-lok, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is made from sturdy copper alloy materials. Moreover, it corresponds to bd-04pmfs, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
BD-03PMFS-QC8001(Datasheets)
pdf icon
BD-04PMFS-QC8001 Drawing(Product Drawings)
pdf icon
ALTW Series Pkg Upgrade 26/Apr/2018(PCN Packaging)
