Current Rating:
3.0A
Pole Format:
4P
Housing Material:
Polymer
Shell Size:
20
Voltage Rating:
600.0 V
Plug/Socket:
Socket
Contact Plating:
Gold
Termination Method:
Crimp, Solder
Shielded/Unshielded:
Unshielded
Strain Relief:
No
Maximum Operating Temperature:
+120°C
IP Rating:
IP66, IP68, IP69K
Body Orientation:
Straight
Contact Gender:
Female
Connector Size:
Miniature
Mating Type:
Quick Connect
Mounting Type:
Rear Mount
Series:
Buccaneer 4000
Minimum Operating Temperature:
-40°C
Number of Contacts:
4
Contact Material:
Copper
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
600VAC/DC
Mounting Feature:
Bulkhead - Front Side Nut
Operating Temperature:
-40°C ~ 120°C
Shell Size, MIL:
-
Number of Positions:
4 (Power)
Backshell Material, Plating:
-
Shielding:
Unshielded
Cable Opening:
-
Shell Material:
Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
REACH Status:
REACH Unaffected
Current Rating (Amps):
8A
edacadModel:
PXP4013/04S/PC Models
Applications:
-
Contact Finish - Mating:
Gold
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/8635786
Package:
Bulk
Shell Size - Insert:
-
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Bayonet Lock
Termination:
Solder
standardLeadTime:
20 Weeks
Insert Material:
-
Orientation:
Keyed
Ingress Protection:
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
UV Resistant
Mounting Type:
Panel Mount, Through Hole
Shell Finish:
-
Color:
Black
Series:
Buccaneer® 4000
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Alloy
Base Product Number:
PXP4013
ECCN:
EAR99

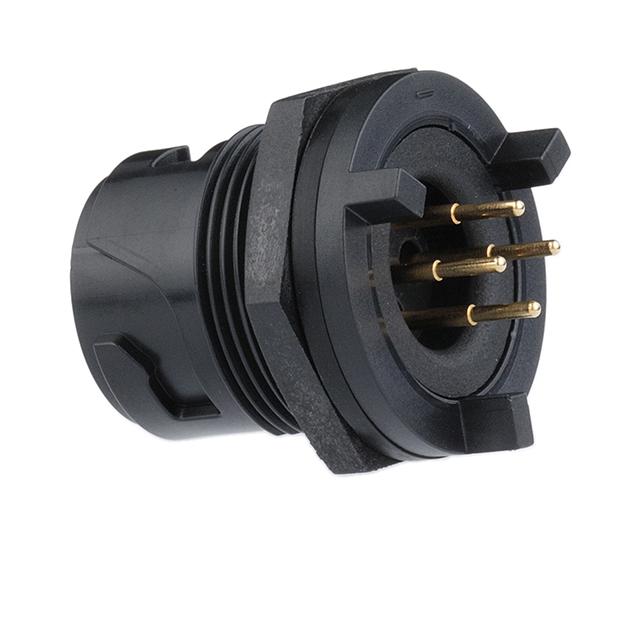

This is manufactured by Bulgin. The manufacturer part number is PXP4013/04S/PC. The product has a current rating of 3.0a. While the pole has 4p format. The product also features robust polymer housing material. The shell has 20 size. Moreover, the product has a nominal 600.0 v voltage rating. It comprises a socket. The high-quality gold is used as contact plating material. It allows crimp, solder termination method. Moreover, the product is unshielded . It has a strain relief characteristic no . It has a maximum operating temperature of +120°c. It is IP rated with ip66, ip68, ip69k. It has straight body orientation. This female contact is widely suited for specific applications. The connector has miniature size. It is a type of quick connect mating. The product is available in rear mount configuration. The product buccaneer 4000, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. The product contains 4 contacts. The product is made from sturdy copper materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. Moreover, the product has a nominal 600vac/dc voltage rating. The product's mounting feature includes bulkhead - front side nut. The product has -40°c ~ 120°c operating temperature range. The product carries possible position value of 4 (power). Furthermore, the product is shielded with unshielded. It is made from highly reliable polycarbonate/polybutylene terephthalate (pbt), halogen free materials. In addition, it is reach unaffected. Additionally, the product's output is 8a. It has nice contact finishing of gold. The basic product material is plastic. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, bayonet lock is the Fastening Type of the product. The product features solder termination style. It has a long 20 weeks standard lead time. The product has a keyed orientation. It is IP rated with ip66/ip68/ip69k - dust tight, water resistant, waterproof. The splendid features of the product include uv resistant. The product is available in panel mount, through hole configuration. It has a classic black colour. The product buccaneer® 4000, is a highly preferred choice for users. The product is made from sturdy copper alloy materials. Moreover, it corresponds to pxp4013, a base product number of the product. The product is designated with the ear99 code number.
