Housing Material:
Polyamide
Number of Contacts:
5
Orientation:
Straight
IP Rating:
IP66, IP68, IP69K
Connector Size:
Standard
Series:
QPD
Pole Format:
4+PE
Contact Gender:
Female
Current:
20A
Plug/Socket:
Socket
Standards/Approvals:
CHINA RoHS, cUL, EF3.0, EU REACH SVHC, EU RoHS, UL, UL 94 HB
Voltage:
690 V
Contact Plating:
Silver

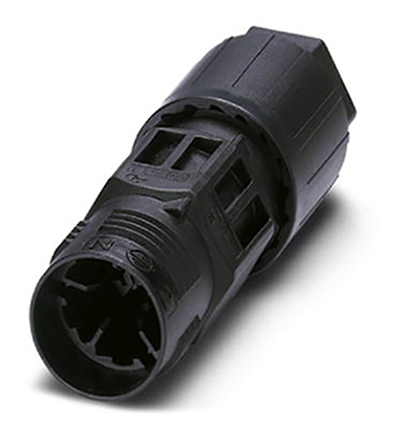

Product Type:
Circular Connector
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper
HTSUS:
8536.69.4020
RoHS Status:
RoHS Compliant
Voltage Rating:
-
Mounting Feature:
-
Operating Temperature:
-40°C ~ 100°C
Shell Size, MIL:
-
Number of Positions:
5 (4 + PE)
Backshell Material, Plating:
Polyamide (PA), Nylon
Shielding:
Unshielded
Cable Opening:
0.236" ~ 0.433" (6.00mm ~ 11.00mm)
Shell Material:
Polyamide (PA), Nylon
Current Rating (Amps):
20A
edacadModel:
1403834 Models
Applications:
-
Contact Finish - Mating:
Silver
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7558934
Package:
Bulk
Shell Size - Insert:
-
Connector Type:
Distributor
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
Threaded
Termination:
IDC
standardLeadTime:
4 Weeks
Insert Material:
Polyamide (PA), Nylon
Orientation:
Keyed
Ingress Protection:
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
Backshell
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
-
Color:
Black
Series:
QPD
Contact Finish Thickness - Mating:
-
Contact Material:
Copper
ECCN:
EAR99
