Housing Material:
Polyamide
Number of Contacts:
4
Mating Type:
Plug-In
IP Rating:
P6k9k, IPI54, IP68, IP69K
Connector Size:
38 mm
Series:
PX0709/P/04
Pole Format:
4
Contact Gender:
Male
Current:
10A
Plug/Socket:
Plug
Standards/Approvals:
E337507, EN 60529:1992+A2:2013, BSEN 60529:1992, 40023148, DIN 40050/Part 9, EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1, UL (Underwriters Laboratory), E93288, VDE, cULus, RoHS
Voltage:
277 V
Contact Plating:
Gold
Contact Material:
Gold Plated

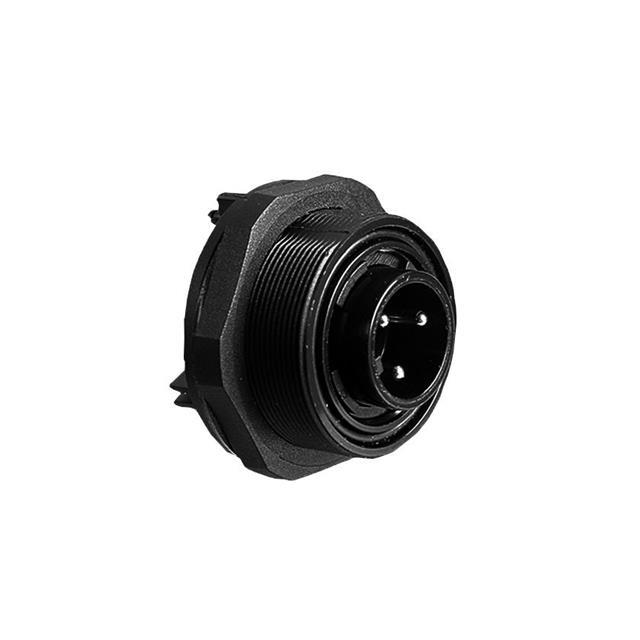

Product Type:
Industrial Circular Connector
Maximum Operating Temperature:
70°C
Minimum Operating Temperature:
-20°C
Mount Type:
Panel
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Operating Temperature:
-20°C ~ 70°C
Shell Size, MIL:
-
Number of Positions:
4 (Power)
Contact Finish - Mating:
Nickel
Backshell Material, Plating:
-
Shielding:
Unshielded
Cable Opening:
-
title:
PX0709/P/04
Shell Material:
Polyamide (PA), Nylon, Glass Filled
REACH Status:
REACH Unaffected
Current Rating (Amps):
10A
Applications:
-
Primary Material:
Plastic
Material Flammability Rating:
UL94 HB
Voltage Rating:
277VAC/DC
Shell Size - Insert:
-
Connector Type:
Receptacle, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Termination:
Screw
standardLeadTime:
22 Weeks
Insert Material:
Polyamide (PA), Nylon
Orientation:
Keyed
Ingress Protection:
IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
-
Mounting Type:
Panel Mount
Shell Finish:
-
Color:
Black
Series:
Buccaneer®, Standard
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Brass
Base Product Number:
PX0709
ECCN:
EAR99
