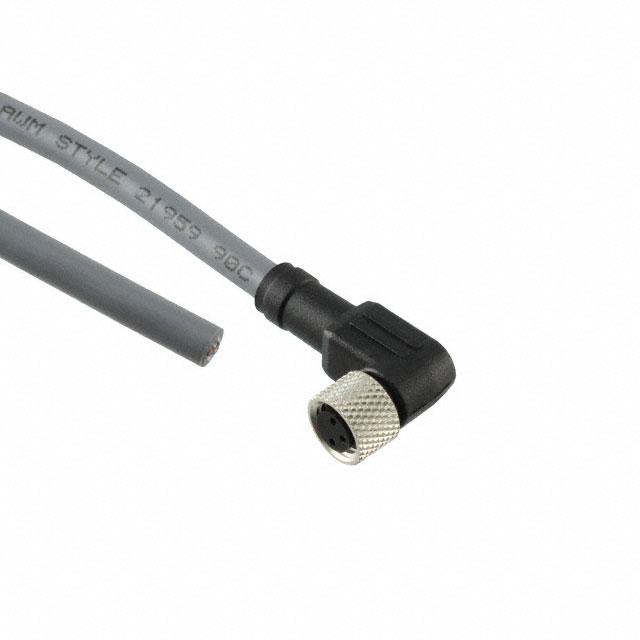

Alpha Wire GW0300100 SL357
Product Information
American Wire Gauge:
22 AWG
Current Rating:
2.2 A
Oil Resistant:
Yes
Number of Cores:
3
Outer Diameter:
5.08mm
Number of Strands:
26
Standards Met:
ANSI/UL 2238, CSA-C22.2 No. 182.3
Cable Shape:
Multicore
Voltage Rating:
600 V ac
Core Strands:
26/36
Shielded/Unshielded:
Unshielded
Operating Temperature Range:
-50 → +90 °C
Maximum Operating Temperature:
+90°C
IP Rating:
IP67, IP68
Connector 1 Orientation:
Right Angle
Minimum Bend Radius:
4 x D (Static), 6 x D (Dynamic)
Fire Behaviour:
Low Smoke Zero Halogen (LSZH)
Connector 1 Gender:
Female
Armoured:
No
Length:
3m
Sheath Material:
PUR
Conductor Material:
Copper
Series:
Alpha Connect
Size of Strands:
36
Connector 1 Number of Contacts:
3
Sheath Colour:
Grey
Cross Sectional Area:
0.34 mm²
Minimum Operating Temperature:
-50°C
Connector 2:
Unterminated
Connector 1:
M8
Connector 1 Housing Gender:
Female
Insulation Material:
MPPE
1st Connector Orientation:
-
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
ROHS3 Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Industrial Environments
Shielding:
-
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M8
REACH Status:
REACH Unaffected
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
9.84' (3.00m)
1st Connector Gender:
Female Sockets
1st Connector Type:
Plug, Right Angle
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
3
Ingress Protection:
IP67 - Dust Tight, Waterproof
Color:
Slate
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Free Hanging (In-Line)
Base Product Number:
GW0300100
ECCN:
EAR99
