Kraus & Naimer Handle for use with Cam Switch

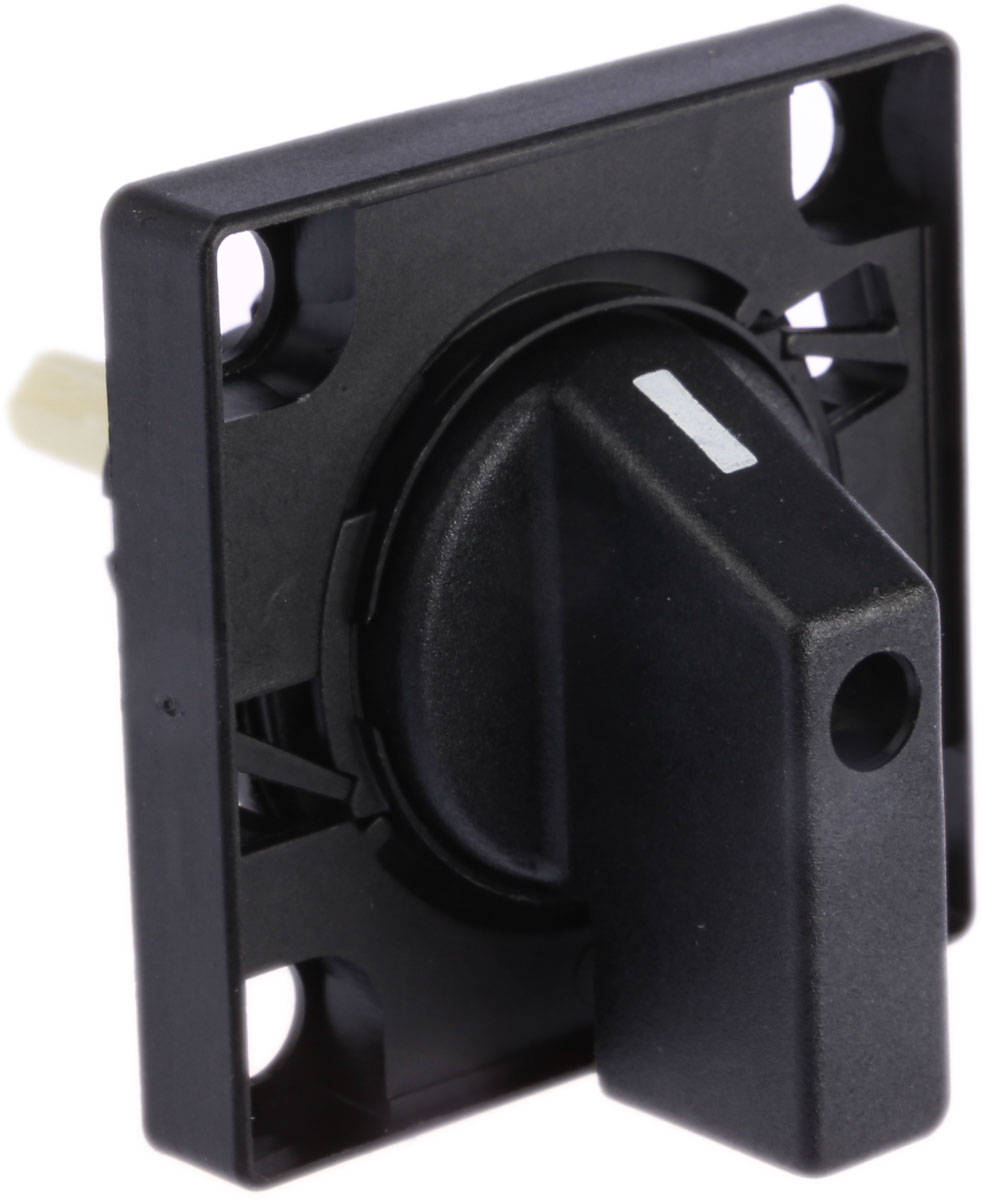

Handle Operator with Square Escutcheon Switch handle operator is used with switch bodies/legend plates. The handle features a square escutcheon which can only be used with switch bodies that have appropriate legend plates to fit. Features & Benefits Single hole panel mounting, 22.5 mm (square escutcheon) Suitable for up to 6 mm panel thickness IP65 protection (front panel) Technical Specification Series CA10 CA20 CA25 CAD11 CHR10 CG8 Insulation Voltage U, 690V 690V 690V 600 690 690 Thermal Current l th 20A 25A 32A 6A 20A 20A Motor Rating AC-23A 7.5kW 11kW 15kW - 7.5kW 7.5kW Motor Rating AC-3 5.5kW 7.5kW 11kW - 5.5kW 5.5kW Switching Angle 60° Dims. (mm) 48 x 48mm Ambient temp. of stages 55°C during 24 hours with peaks up to 60°C at 100% load Protection IP20 Legend Plate Silver with black text Standards IEC 947, EN 60947 CA10, CA20, CA25 & CAD11 Series Open finger proof terminals accessible from the side to facilitate wiring. Captive plus-minus screws CHR10 Series For connection with ring type terminals. Open finger-proof terminals accessible while switch is being installed. Captive plus-minus screws located 90° apart from the terminal direction allowing for connection of wires without any interference with the terminal screws. CG8 Series Open finger-proof terminals accessible while the switch is installed. Captive plus-minus screws. Due to the arrangement of the terminals it is possible to install switches closely, side by side or to mount them directly at the cable trays
