Measurement Mode:
Radio, Power, Cathodic Protection System, Null, Peak, Peak (Combined Peak,Guidance or Peak)
Power Source:
Lithium-ion Battery, DC Power Supply
Cable Detection Depth:
30m
Depth Indicator:
Yes
Depth Accuracy:
±5 %
Height:
125mm
Width:
286 mm
Length:
648mm
Standards/Approvals:
WEEE, RoHS - Directive - 2011/65/EU, RoHS, Radio Equipment Directive - 2014/53/EU, Network Rail - Certificate of acceptance PA05/07424, Low Voltage Directive - 2014/35/EU, ISO 9001: 2015, IC, FCC, ESTI EN 300 019-2-2:1999 (per table 6), EN 61326-1:2013, EN 61010-1:2010, EN 60529 1992 A2 2013, EN 60068-2-64:2008 Test Fh, EN 60068-2-27:2009 (Test Ea), EN 301 489-3 (V1.6.1), EN 301 489-17 (V2.2.1), EN 300 440-2 (V1.4.1), EN 300 330-2 (V1.5.1), EMC Directive - 2014/30/EU
Minimum Operating Temperature:
-20°C
Battery Type:
NiMH, LR20, MN1300, Lithium-ion
Product Type:

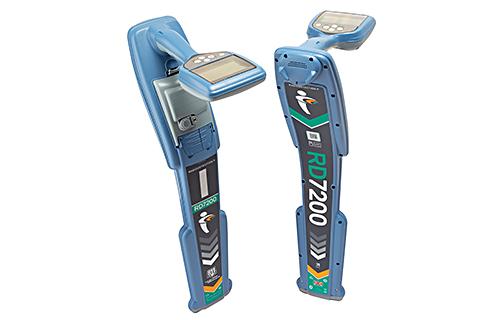

Cable Avoidance Tool
Maximum Operating Temperature:
50°C
Location Accuracy:
± 5 % of depth
