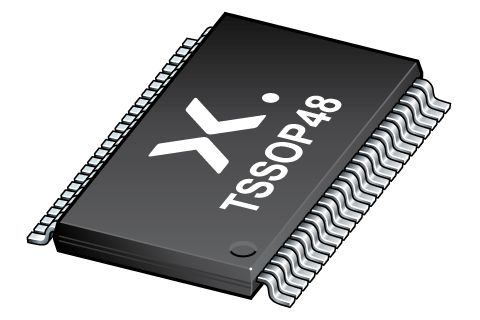

Nexperia 74LVTH16244BDGG,18 3-State Buffer, 48-Pin DGG

74LVTH16244BDGG-18 Nexperia 74LVTH16244BDGG,18 3-State Buffer, 48-Pin DGG
74LVTH16244BDGG-18 Nexperia 74LVTH16244BDGG,18 3-State Buffer, 48-Pin DGG
Nexperia

Product Information

Maximum Low Level Output Current:
64mA
Minimum Supply Voltage:
2.7V
Maximum Supply Voltage:
3.6V
Maximum Operating Temperature:
85°C
Logic Function:
Buffer
Maximum Propagation Delay Time @ CL:
4.0ns
Logic Family:
74
Automotive Standard:
No
Width:
6.2 mm
Length:
12.6mm
Schmitt Trigger Input:
No
Package Type:
DGG
Output Type:
3 State
Minimum Operating Temperature:
-40°C
Standards/Approvals:
ANSI/ESDA/JEDEC JS-001 Class 2, ANSI/ESDA/JEDEC JS-002 Class C3, JESD 78 Class II Level B, JESD8C
Number of Channels:
16
Product Type:
Buffer
Supply Current:
0.12mA
Pin Count:
48
Maximum High Level Output Current:
32mA
RoHs Compliant
Checking for live stock

This is 3-State Buffer 48-Pin DGG manufactured by Nexperia. The manufacturer part number is 74LVTH16244BDGG,18. On the other hand, it is featured with 64ma of max. low level output current. It has a minimum 2.7v supply voltage . The product requires a maximum 3.6v supply voltage . It has a maximum operating temperature of 85°c. The primary function of logic includes buffer. The logic family is 74. The product complies with automotive standard - no. Furthermore, the product is 6.2 mm wide. Its accurate length is 12.6mm. Schmitt Trigger Input - no. The package is a sort of dgg. Furthermore, it has a3 state output. Whereas, the minimum operating temperature of the product is -40°c. It is supplied with 16 channels. buffer is a versatile product designed to provide user-defined applications. It features 0.12ma supply current. It contains 48 pins. While a 32ma of maximum high level output current.

pdf icon
Datasheet - 74LVTH16244BDGG,18(Technical Reference)
