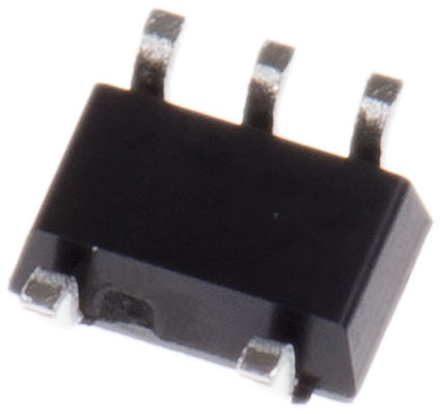

NXP 74AUP1G07GW,125 Open Drain Buffer, 0.8 → 3.6 V, 5-Pin TSSOP

74AUP1G07GW-125 NXP 74AUP1G07GW,125 Open Drain Buffer, 0.8 → 3.6 V, 5-Pin TSSOP
74AUP1G07GW,125
Nexperia

Product Information

Maximum Low Level Output Current:
4mA
Dimensions:
2.25 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
20.7 ns @ 30 pF
Propagation Delay Test Condition:
30pF
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
0.8 V
Output Type:
Open Drain
Height:
1mm
Width:
1.35mm
Length:
2.25mm
Package Type:
TSSOP
Logic Family:
AUP
Input Type:
Single Ended
Schmitt Trigger Input:
No
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Operating Supply Voltage:
3.6 V
RoHs Compliant
Checking for live stock

This is NXP Open Drain Buffer 0.8 → 3.6 V 5-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74AUP1G07GW,125. On the other hand, it is featured with 4ma of max. low level output current. The given dimensions of the product include 2.25 x 1.35 x 1mm. The product is available in surface mount configuration. It provides up to 20.7 ns @ 30 pf maximum propagation delay time. Features 30pf of propagation delay test condition. Whereas, the minimum operating temperature of the product is -40 °c. While its minimum operating supply voltage is 0.8 v. Furthermore, it has aopen drain output. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.25mm. The package is a sort of tssop. The logic family is aup. It carries single ended input type. Schmitt Trigger Input - no. It has a maximum operating temperature of +125 °c. It contains 5 pins. It has 3.6 v maximum operating supply voltage.

pdf icon
74AUP1G07 Low-power buffer with open-drain output(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
