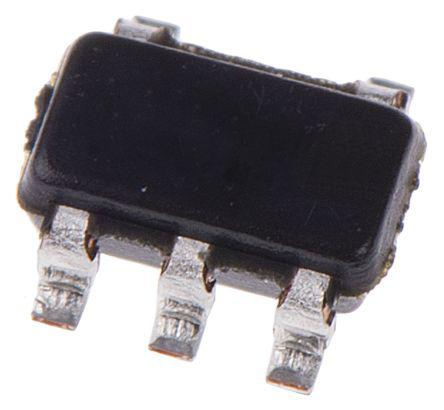

ON Semiconductor NC7SZ126M5X Buffer & Line Driver, 3-State, 1.65-5.5V, 5-Pin SOT-23
Product Information
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Dimensions:
3 x 1.7 x 1.3mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
6ns
Number of Channels per Chip:
1
Minimum Operating Temperature:
-40 °C
Logic Function:
Buffer
Output Type:
3 State
Height:
1.3mm
Width:
1.7mm
Length:
3mm
Package Type:
SOT-23
Logic Family:
TinyLogic UHS
Input Type:
Single Ended
Maximum Operating Supply Voltage:
5.5 V
Minimum Operating Supply Voltage:
1.65 V
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search NC7SZ126M5X on website for other similar products.
We accept all major payment methods for all products including ET16849046. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with NC7SZ126M5X directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Buffer & Line Driver Combinations category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor NC7SZ126M5X Buffer & Line Driver, 3-State, 1.65-5.5V, 5-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor NC7SZ126M5X Buffer & Line Driver, 3-State, 1.65-5.5V, 5-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16849046 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16849046.
Yes. We ship NC7SZ126M5X Internationally to many countries around the world.
This is Buffer & Line Driver 3-State 1.65-5.5V 5-Pin SOT-23 manufactured by ON Semiconductor. The manufacturer part number is NC7SZ126M5X. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. The given dimensions of the product include 3 x 1.7 x 1.3mm. The product is available in surface mount configuration. It provides up to 6ns maximum propagation delay time. It comprises 1 channels per chip. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes buffer. Furthermore, it has a3 state output. In addition, the height is 1.3mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3mm. The package is a sort of sot-23. The logic family is tinylogic uhs. It carries single ended input type. It has 5.5 v maximum operating supply voltage. While its minimum operating supply voltage is 1.65 v. It has a maximum operating temperature of +85 °c. It contains 5 pins. Features 50pf of propagation delay test condition.
