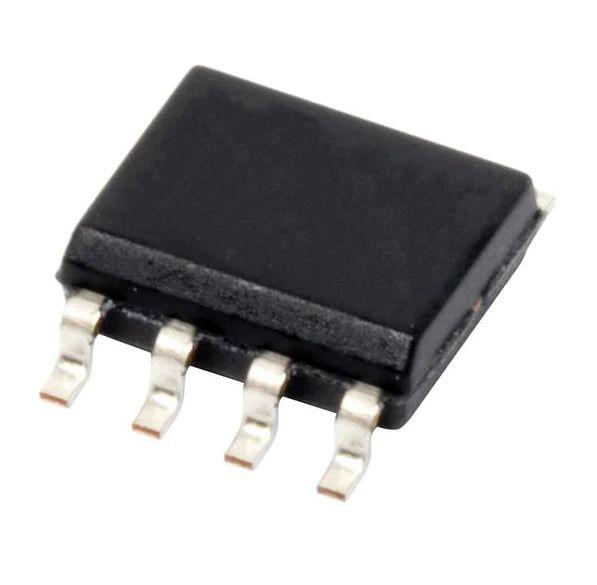

Analog Devices, ADP2302ARDZ Step-Down Switching Regulator 2A Adjustable 8-Pin, SOIC

ADP2302ARDZ Analog Devices,  Step-Down Switching Regulator 2A Adjustable 8-Pin, SOIC
Analog Devices

Product Information

Number of Outputs:
1
Dimensions:
5 x 4 x 1.65mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
805 kHz
Output Type:
Adjustable
Height:
1.65mm
Width:
4mm
Length:
5mm
Maximum Input Voltage:
20 V
Package Type:
SOIC
Regulator Function:
Step Down
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
0.8 V
Minimum Input Voltage:
3 V
Maximum Output Current:
2A
Pin Count:
8
Switching Regulator:
Yes
RoHs Compliant
Checking for live stock

This is Step-Down Switching Regulator 2A Adjustable 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is ADP2302ARDZ. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 5 x 4 x 1.65mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. It has a maximum 805 khz switching frequency. Furthermore, it has aadjustable output. In addition, the height is 1.65mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. 20 v is the maximum voltage of the bespoke product. The package is a sort of soic. It has a/an step down function regulator . Whereas, the minimum operating temperature of the product is -40 °c. The product features 0.8 v minimum output voltage. The product has 3 v of minimum input voltage. Featuring 2a of maximum output current. It contains 8 pins. It has a switching regulator yes .

pdf icon
Datasheet ADP2302ARDZ(Technical Reference)
