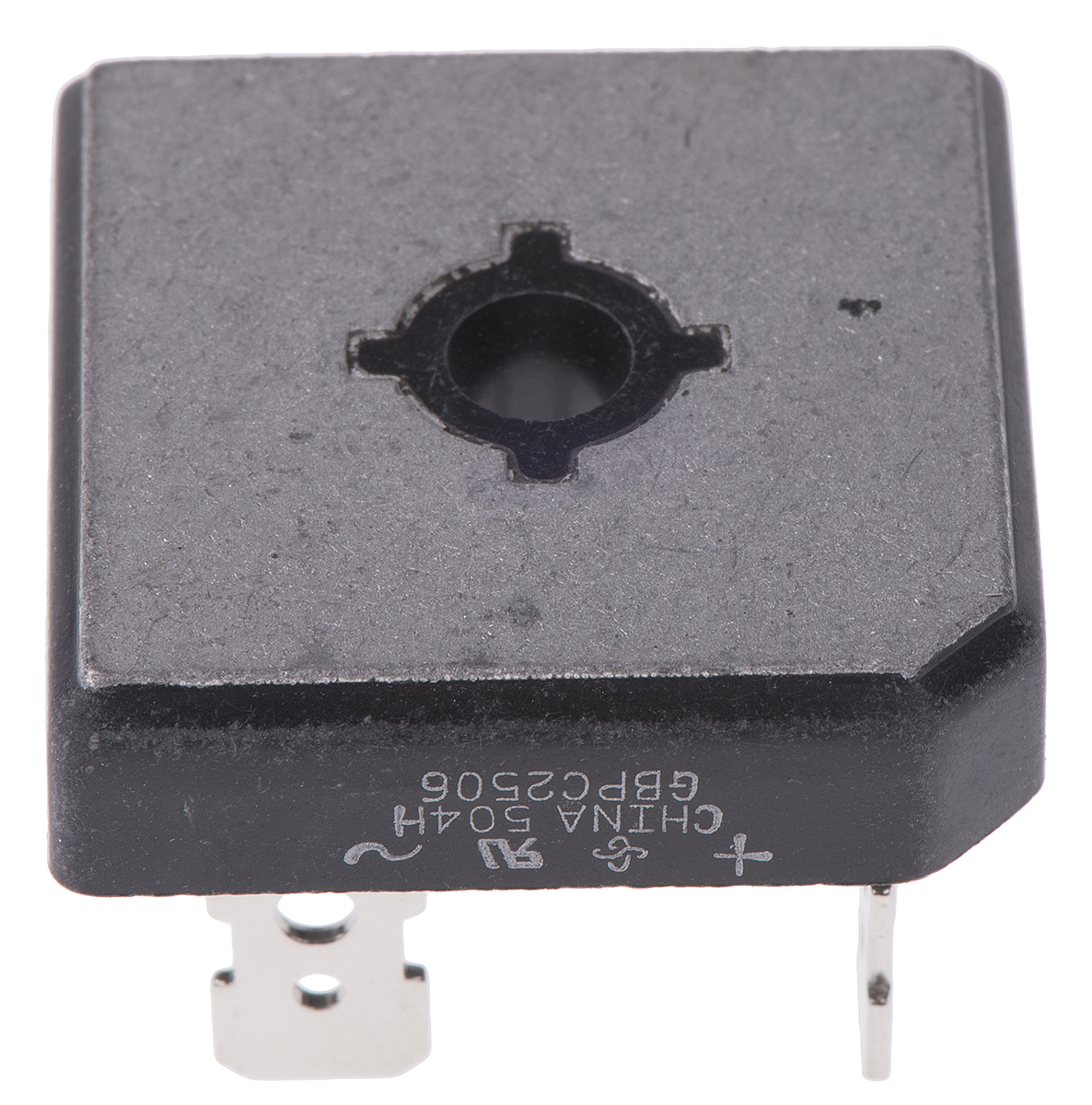

Vishay GBPC2506-E4/51, Bridge Rectifier, 25A 600V, 4-Pin GBPC

GBPC2506-E4-51 Vishay GBPC2506-E4/51, Bridge Rectifier, 25A 600V, 4-Pin GBPC
GBPC2506-E4/51
Vishay

Product Information

Peak Reverse Current:
5µA
Dimensions:
28.8 x 28.8 x 7.62mm
Bridge Type:
Single Phase
Peak Non-Repetitive Forward Surge Current:
300A
Peak Average Forward Current:
25A
Height:
7.62mm
Peak Forward Voltage:
1.1V
Width:
28.8mm
Length:
28.8mm
Package Type:
GBPC
Peak Reverse Repetitive Voltage:
600V
Minimum Operating Temperature:
-55 °C
Mounting Type:
Screw Mount
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Bridge Rectifier 25A 600V 4-Pin GBPC manufactured by Vishay. The manufacturer part number is GBPC2506-E4/51. It has a typical 5µa peak reverse current . The given dimensions of the product include 28.8 x 28.8 x 7.62mm. It contains a/an single phase type bridge . Moreover, a bespoke product has 300a peak non-repetitive forward surge current. Additionally, it has about 25a of peak average forward current . In addition, the height is 7.62mm. Whereas, the peak forward voltage is about 1.1v . Furthermore, the product is 28.8mm wide. Its accurate length is 28.8mm. The package is a sort of gbpc. While having the peak reverse repetitive 600v. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in screw mount configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins.

pdf icon
GBPC12, GBPC15, GBPC25, GBPC35, Glass Passivated Single-Phase Bridge Rectifier(Technical Reference)
pdf icon
Design Guidelines for Schottky Rectifiers(Technical Reference)
pdf icon
Application Note - Fundamentals of Rectifiers(Technical Reference)
pdf icon
Application Note - High Speed Data Line Protection(Technical Reference)
pdf icon
Application Note - SUPERECTIFIER(Technical Reference)
pdf icon
Pad Layouts & Soldering Process(Technical Reference)
pdf icon
Application Note - Rectifiers for PFC(Technical Reference)
pdf icon
Application Note - Physical Explanation(Technical Reference)
pdf icon
Application Note - PFC with Ultrafast Diodes(Technical Reference)
pdf icon
Diodes Group Body Marking(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search GBPC2506-E4/51 on website for other similar products.
We accept all major payment methods for all products including ET16828570. Please check your shopping cart at the time of order.
You can order Vishay brand products with GBPC2506-E4/51 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bridge Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay GBPC2506-E4/51, Bridge Rectifier, 25A 600V, 4-Pin GBPC. You can also check on our website or by contacting our customer support team for further order details on Vishay GBPC2506-E4/51, Bridge Rectifier, 25A 600V, 4-Pin GBPC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16828570 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16828570.
Yes. We ship GBPC2506-E4/51 Internationally to many countries around the world.
