Manufacturer : | Taiwan Semiconductor |
Manufacturer Part No : | GBPC1508 T0 |
Enrgtech Part No : | ET10002688 |
Product Range : | PolySwitch RXEF Series |

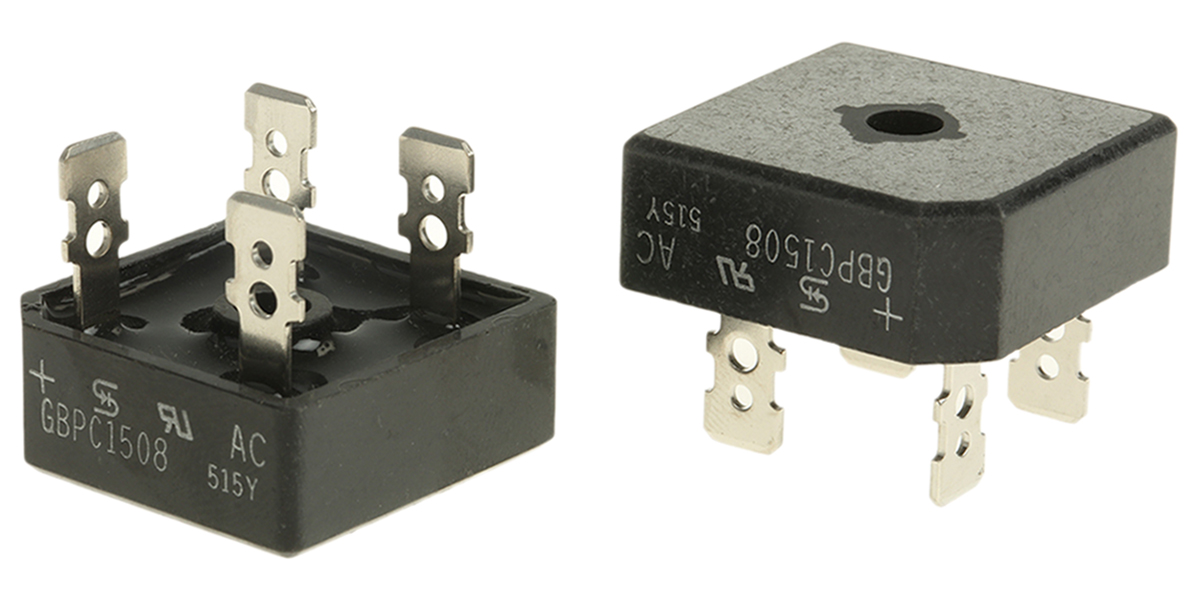

Taiwan Semiconductor GBPC1508 T0, Bridge Rectifier, 15A 800V, 4-Pin GBPC
Bridge Rectifiers with Push-on Terminals, GBPC 15 Series, Taiwan Semiconductor
High Current 15 Amperes
Glass passivated chip junction
Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation
Isolated voltage from case to lead over 2500V
Fast-on Terminals
Approvals
UL E-96005
Bridge Rectifiers - Taiwan Semiconductor
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
Product Information
Peak Reverse Current | : | 5µA |
Dimensions | : | 29 x 29 x 11.23mm |
Bridge Type | : | Single Phase |
Peak Non-Repetitive Forward Surge Current | : | 300A |
Peak Average Forward Current | : | 15A |
Height | : | 11.23mm |
Peak Forward Voltage | : | 1.1V |
Width | : | 29mm |
Length | : | 29mm |
Package Type | : | GBPC |
Peak Reverse Repetitive Voltage | : | 800V |
Minimum Operating Temperature | : | -50 °C |
Mounting Type | : | Screw Mount |
Configuration | : | Single |
Maximum Operating Temperature | : | +150 °C |
Pin Count | : | 4 |
rohs | : | RoHS Certificate of Compliance |
Technical Documents
- GBPC 15, 25, 35 SERIES High Current 15, 25, 35 AMPS. Single Phase Glass Passivated Bridge Rectifiers Data Sheet (Technical Reference)
- ESD Control Selection Guide V1 (Technical Reference)
