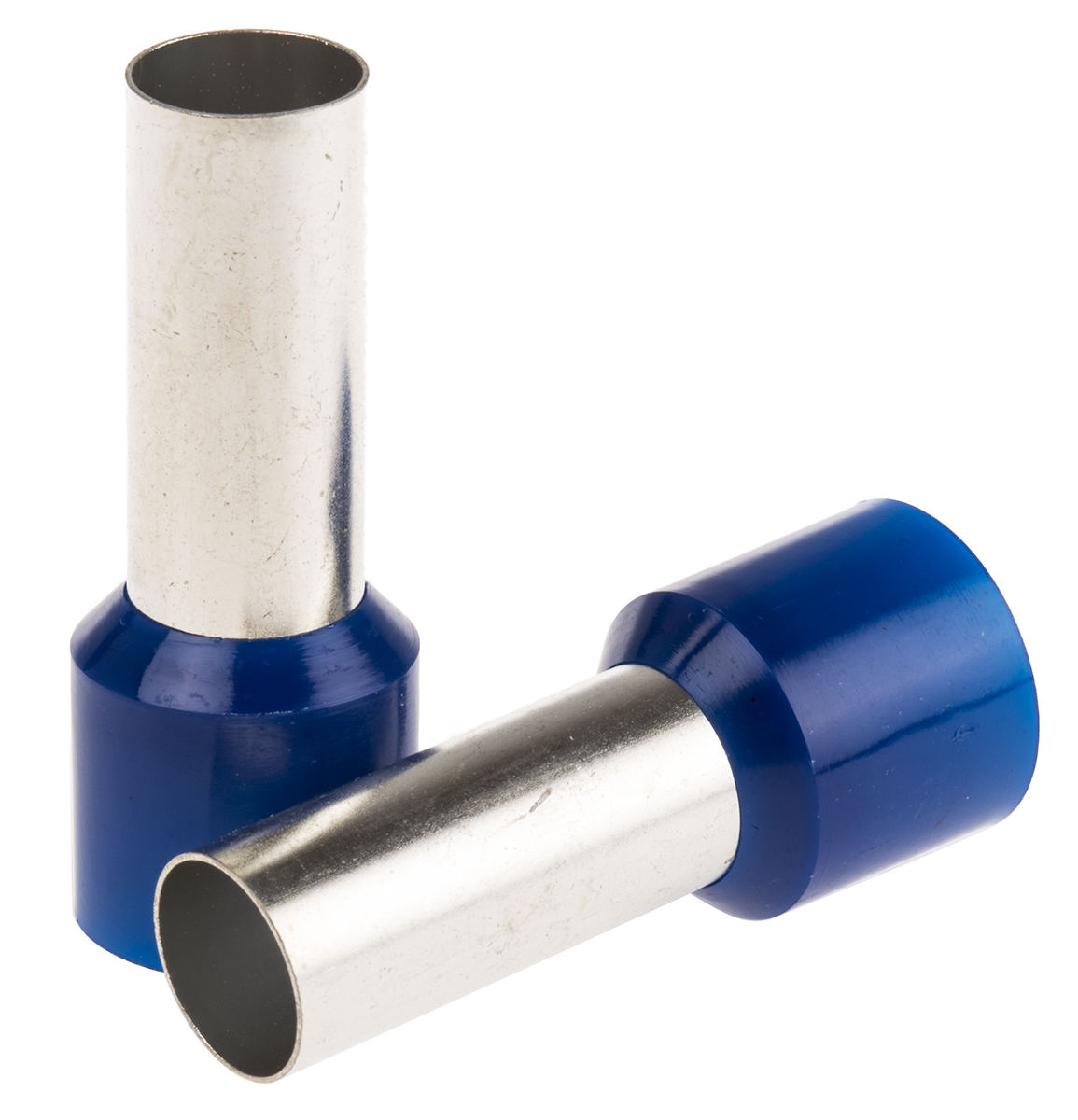

RS Pro Insulated Crimp Bootlace Ferrule, 25mm Pin Length, 10.9mm Pin Diameter, 50mm² Wire Size, Blue

311-7886 RS Pro Insulated Crimp Bootlace Ferrule, 25mm Pin Length, 10.9mm Pin Diameter, 50mm² Wire Size, Blue
RS Pro

Product Information

Pin Length:
25mm
Colour:
Blue
Minimum Wire Size AWG:
1/0AWG
Number of Entries:
1
Insulation Material:
Nylon
Overall Length:
41mm
Insulation:
Insulated
Pin Diameter:
10.3 mm, 10.9mm
Minimum Wire Size mm²:
50mm²
Maximum Wire Size AWG:
1/0AWG
Maximum Wire Size mm²:
50mm²
RoHs Compliant
Checking for live stock

RS Pro Bootlace Ferrules (French Colours) Made from a reliable bright tinned copper with PP insulating sleeves, offering you the reliability and reassurance required for all your wire termination needs. We offer a range of different-sized boot laced ferrules to accommodate your requirements.

Features and benefits:

Offers up to 100% contact between your crimped wire stands and your end contact point

Stops your wire strands from spreading out upon contact with the contact point (vs. a wire strand not boot laced as these may spread due to pressure at the contact point, losing you up to 50% contact.

Boot laced wire strands are easy to repurpose and re use elsewhere (useful if you need to move the wires around often).

Once the boot lace has been crimped using the appropriate tool, it offers great protection from corrosion commonly caused by oxygenation or moisture.

The boot lace helps you keep your wire strands separate from other terminals or connections close by, reducing any risk of damaging any surrounding equipment.

Easier to guide the crimped wire strand if it has a narrow boot lace into its intended contact point as the typical narrow points easily slots into place (vs. wiring that may fray if accidental contact occurs, making it more time consuming to re position the frayed wiring ends).

Large range of French colours are available to choose from offering you a wider choice of wire sizing.

Applications:

  • Power distribution panels
  • Terminal blocks
  • Captive terminals Note Length quoted is Pin Length Approvals -

Product Details

Buy 25mm reducing pin crimp ET16737704/311-7886 online. EnrgTech is offering free shipping for UK customers on shopping over 200 Pounds.

RS Pro Insulated Crimp Bootlace Ferrule

RS PRO produces a wide range of French colour-coded bootlace ferrules that are the best quality and provide a neat end-termination to multi-stranded wires. This 25mm reducing crimp pin or bootlace ferrule provides a positive connection while connecting wires to captive terminals and terminal blocks.

These RS PRO bootlace ferrules are made from tinned copper and PP insulated sleeves, making the termination process easier and providing reliable connections. To accommodate your requirements, you will find various bootlace ferrules on our website with the specifications stated, which will help you find the one suitable for your applications. Get your hands on this product at the most reasonable prices found on our website. The colour-coding of this product is very important in identifying the bootlace ferrules' sizes. This feature saves you a lot of time and trouble finding the right size for your application.

Applications

The bootlace ferrules are used on the multi-stranded wires inserted into the terminal blocks and screw terminals. Some of its applications include circuit breakers, consumer units, electrical control panels, power distribution panels.

Features and Benefits

  • This 25mm reducing crimp pin ferrule provides an excellent electrical connection.
  • It minimizes the risk of short circuits.
  • You can be assured of 100% contact between the crimped wire stands and end contact points.
  • There is no risk of the wire stands spreading out once they contact the contact point.
  • The tin-plated copper tube provides excellent conductivity.
  • The crimped terminals are easily removable without damaging the end of the wires.
  • Buy this product from our website at the best possible process. You will get the most amazing customer service and a smooth shipping procedure.

pdf icon
RS PRO Datasheet(Technical Reference)
