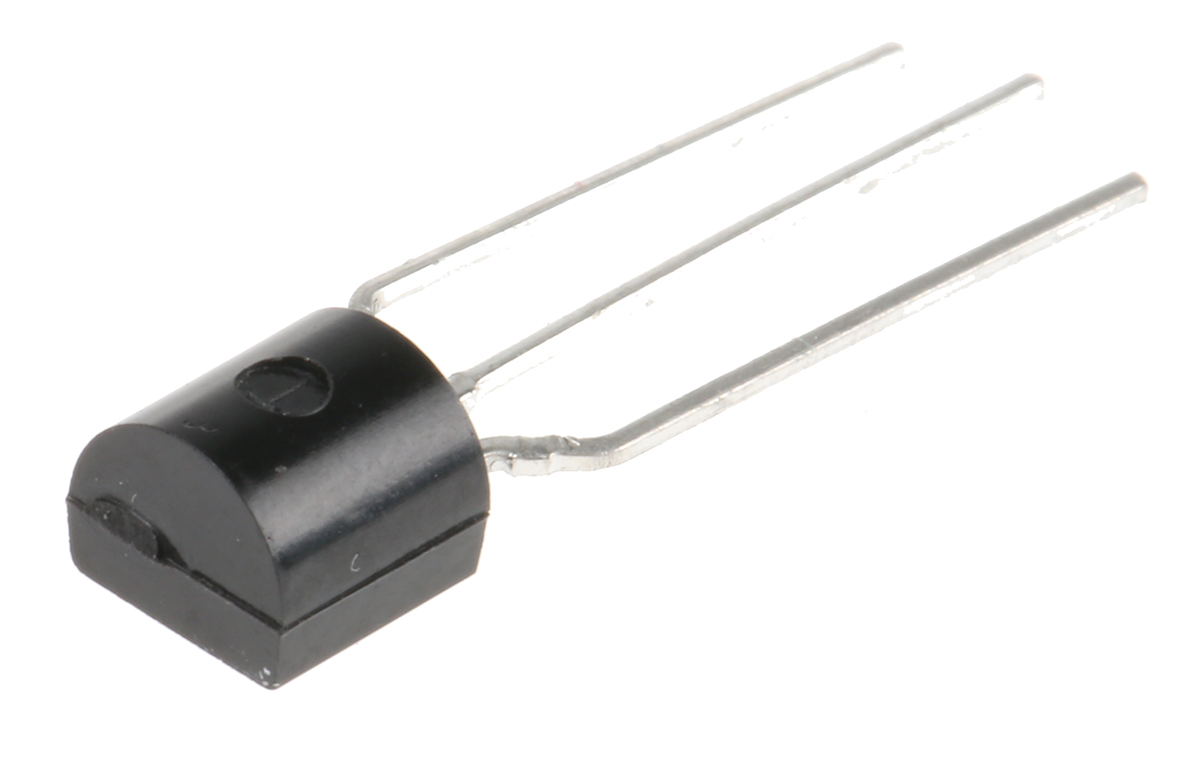

Taiwan Semiconductor BC547C A1 NPN Transistor, 100 mA, 45 V, 3-Pin TO-92

Enrgtech Part No: ET13905954
|
Manufacturer Part No:
BC547C A1
|
Manufacturer: Taiwan Semiconductor

BC547C-A1 Taiwan Semiconductor BC547C A1 NPN Transistor, 100 mA, 45 V, 3-Pin TO-92

Product Information

Minimum DC Current Gain:

420

Transistor Type:

NPN

Dimensions:

5.1 x 4.1 x 4.7mm

Mounting Type:

Through Hole

Maximum Power Dissipation:

500 mW

Maximum Collector Base Voltage:

50 V

Maximum Collector Emitter Voltage:

45 V

Maximum Emitter Base Voltage:

6 V

Package Type:

TO-92

Number of Elements per Chip:

Maximum DC Collector Current:

100 mA

Maximum Operating Temperature:

+150 °C

Checking for live stock

The Taiwan Semiconductor BC547C A1 is a high-performance NPN bipolar junction transistor designed for high-gain amplification and efficient switching in low-power electronic circuits. Housed in a compact TO-92 package, this silicon epitaxial planar device offers a remarkable current gain, making it an essential component for processing weak signals. Its robust design ensures reliable performance across a variety of consumer electronics, signal processing modules, and educational prototyping projects, providing a versatile solution for modern engineering needs.

What Makes Our Product Stand Out?

This Taiwan Semiconductor BC547C A1 bipolar transistor offers exceptionally high current gain and low noise, ensuring superior signal clarity and efficient power management in circuits.

High DC current gain (hFE) for maximum sensitivity.
Compact TO-92 footprint for space-saving PCB integration.

Core Performance Features & Key Uses

Technical Specifications

Transistor Polarity: NPN
Collector-Emitter Voltage (Vceo): 45V
Continuous Collector Current (Ic): 100mA
Power Dissipation (Ptot): 500mW
DC Current Gain (hFE): 420 to 800 (C-grade)
Transition Frequency: 300 MHz

Suitable Environments

Consumer Electronics: Ideal for TV and home appliance control boards.
Signal Processing: Perfect for low-noise audio preamplifiers and signal boosters.
Switching Applications: Suitable for driving small loads like LEDs and relays.
Prototyping: Widely used in educational labs and DIY breadboard circuits.
